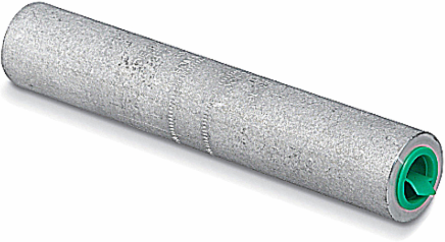

Blackburn AC 1000 R 750 Aluminum Straight Compression Reducing Splice 1000 to 750 kcmil, 9-7/8 Inch
- MPN: AC 1000 R 750
- UPC: 783786069606
- PPN: T-B-AC 1000 R 750
CAD
$194.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Straight Reducing Splice, for Use with Aluminum and Copper Conductors, 1000 to 750
Features
- Made of Aluminum for High Strength and High Conductivity.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor and Capped to Prevent Oxidation.
- All Splices Marked with Conductor Size and Die Reference for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121449 Wire or cable compression splice |
|---|---|
| Brand Name | Blackburn |
| Special Features | Dual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound. Solid Center Stop ensures porper Cable insertion. |
| Standard | ANSI C119.4 |
| Connection | Compression/Crimp |
| Number Of Conductors | 2 |
| Finish | Bare |
| IGCC | 4669 Wire or cable compression splice |
|---|---|
| Type | Straight Compression Reducing Splice |
| Application | Reducing Cable Splice |
| Size | 9-7/8 inch |
| Conductor Range | 1000 to 750 kcmil |
| Material | Aluminum |
| Insulation | None |
Packaging
| Inner Dimensions (inches) | 13.18x7.75x7 |
|---|---|
| Outer Dimensions (inches) | 13.375x8.25x7.875 |
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 1.98 lbs. Each |
