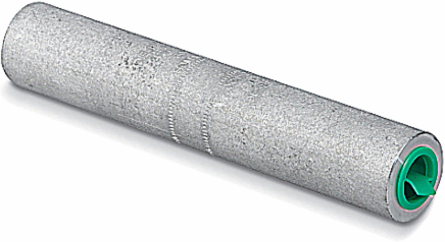

Blackburn AC 1/0 R 2 TN Straight Compression Reducing Splice, 4-9/16 Inch Long, 1/0 to #2 Conductor Range
- MPN: AC 1/0 R 2 TN
- UPC: 783786691579
- PPN: T-B-AC 1/0 R 2 TN
CAD
$62.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tin-Plated Aluminum Compression Reducer for Aluminum and Copper, 1/0 to #2 Stranded
Features
- Made of Aluminum for High Strength and High Conductivity.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor and Capped to Prevent Oxidation.
- All Splices Marked with Conductor Size and Die Reference for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121448 Wire or cable compression connector |
|---|---|
| Brand Name | Blackburn |
| Special Features | Dual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound. Solid Center Stop ensures porper Cable insertion. |
| Standard | ANSI C119.4 |
| Conductor Range | 1/0 to #2 |
| Finish | Tin-Plated |
| IGCC | 4668 Wire or cable compression connector |
|---|---|
| Type | Straight Compression Reducing Splice |
| Application | Reducing Cable Splice |
| Size | 4-9/16 inch long |
| Material | Aluminum |
| Insulation | No |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 1x1x1 |
| Outer Quantity | 200 |
|---|---|
| Weight Uom | 0.11 lbs. Each |
