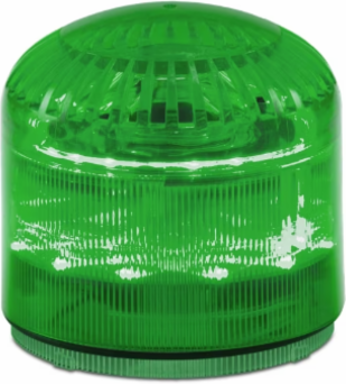

Federal Signal SLM600G StreamLine Modular Audible Visual LED Light, High Output, Multifunctional, UL and cUL, Green, Base Sold Separately
Federal Signal SLM600G StreamLine Modular Audible Visual LED Light, High Output, Multifunctional, UL and cUL, Green, Base Sold Separately
- MPN: SLM600G
- UPC: 782979232421
- PPN: FDS-SLM600G
- UNSPSC: 39111706
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$394.98/ EA
Description
Model SLM600 is a multifunctional LED beacon and sounder combination developed with a multiple input technology that allows three separate levels of alarm, controllable via wiring selection. This unit offers multiple combinations including an independent visual signal, an independent audible tone, or a combined audible tone and visual signal. SLM600 offers three flash patterns (3x strobe, fade and steady) and the option of no visual effect. There are 64 unique tones to select from across two switches (32 tones per switch). The volume of the selected tone is adjustable between 99-115 dBa @ 1m at three output levels (high, medium, low) through an integrated button. Channel 1 includes a visual signal only (default 3x strobe). Channel 2 combines an audible tone from switch A to the chosen flash pattern. Channel 3 combines an audible tone from switch B to the chosen flash pattern. Channels 2 and 3 allow the option of audible tone only/no visual effect by cycling through the flash patterns using the integrated button until the visual effect turns off. The SLM600 enclosure is made from a self-extinguishing polycarbonate material with high impact and UV resistance.* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting SLM Documents or Rev A Tones.
Features
- Compatible with 12-24VAC/DC or 120-240VAC*
- PLC compatible with PNP or NPN connections
- 3 Channels includedVisual signal only
- Visual signal onlyVisual signal + tone 1
- Visual signal + tone 1Visual signal + tone 2
- Visual signal + tone 2
- The option to have independent audible tone
- 100,000 hour LED
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- Three flash patterns: 3x strobe (default), fade and steady
- Seven mounting base options
- Type 3R, IP65 enclosure
- CE Certified
- UL and cUL Listed
Specifications
Specifications
- Country of Origin
- Italy
- Body Color
- Gray, Red
- dBa 1 Meter
- 99-115 dBa
- Diameter (in)
- 3.9
- Flash Pattern Type
- Simulated Strobe/Steady
- Availability
- In Stock - Ships in 2 Bus Days
- Mount Type
- 2-Stack Dock Base, 3-Stack Dock Base, Deep Base, Shallow Base, Twin Mount, Pipe, Wall
- Operating Voltage
- 12-24VAC-DC, 120-240VAC
- Depth
- 3.44 in, 8.7376 cm
- Diameter
- 3.9 in, 9.906 cm
Weight0.44 lbs
Certification ListingCE, UL, cUL
dBa 10 Ft89-105 dBa
Diameter (mm)99.06
Flashes Per Minute85 (+/-10)
Lens ColorGreen
Operating Temp.-40˚ to +131˚F (-40˚ to +55˚C)
Visual Signals Lens ColorGreen
Height3.44 in, 8.7376 cm
