Federal Signal SLM1450 StreamLine Modular LED Light, RGB, Multifunctional, UL and cUL, Fresnel Lens, Base Sold Separately
- MPN: SLM1450
- UPC: 782979245346
- PPN: FDS-SLM1450
- UNSPSC: 39111706
CAD
$281.56
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

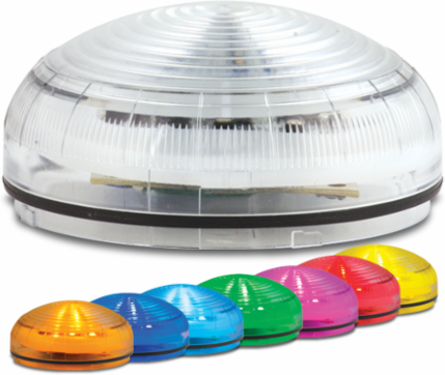

SLM1400 and SLM1450 models are multicolor, multifunctional LED beacons engineered for pedestrians, docks, and industrial traffic control. Developed with a multichannel technology, these models allow three separate levels of alarm controllable via wiring selection. For each channel, two integrated buttons allow the user to select a different color (Amber, Blue, Clear, Cyan, Green, Magenta, Red, Yellow), flash pattern (steady, single flash, triple flash, quintuple flash, random flash), and light output brightness (33%, 66%, 100%) for a truly custom application.Each SLM1400 model includes an opaque lens for signaling in close proximities. SLM1450 includes a fresnel lens for farther distance signaling. The body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.
Features
- Compatible with 12-24VAC/DC or 120-240VAC*
- PLC compatible with PNP or NPN connections (Dock base is only NPN)
- Choice of eight colors, five light effects, and three light output levels per channel
- 100,000-hour LED
- Seven mounting base options
- Type 4X, IP66 enclosure
- IP69K** compliant
- CE and UKCA compliant
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Weight | 0.13 lbs |
| Certification Listing | CE, UL, cUL |
| Flash Pattern Type | 1x Flash Mode 120 (+/-10), 3x Flash Mode 85 (+/-10), 4x Flash Mode 85 (+/-10) |
| LED Color | Amber, Blue, Clear, Cyan, Green, Magenta, Red, Yellow |
| Lens Style | Fresnel |
| Operating Temp. | -40˚ to +131˚F (-40˚ to +55˚C) |
| Visual Signals Model Description | SLM1450-Fresnel |
| Enclosure Rating | IP66, IP69K, Type 4X |
| Product Life Cycle Status | Completed |
| Height | 1.67 in |
|---|---|
| Body Color | Gray, Red |
| Diameter | 3.9 in (99.06 mm) |
| Availability | In Stock - Ships in 2 Bus Days |
| Lens Color | Clear |
| Mount Type | 2-Stack Dock Base, 3-Stack Dock Base, Deep Base, Shallow Base, Twin Mount, Pipe, Wall |
| Operating Voltage | 12-24 Vac/dc, 120-240 Vac |
| Environmental Rating | Ordinary Location |
| Lead Time | In Stock - Ships in 2 Bus Days |
