StreamLine Modular LED Light, RGB, Multifunctional, UL and cUL, Opaque Lens, Base Sold Separately
Federal Signal

Federal Signal SLM1400 StreamLine Modular LED Light, RGB, Multifunctional, UL and cUL, Opaque Lens, Base Sold Separately

  • MPN: SLM1400
  • UPC: 782979245339
  • PPN: FDS-SLM1400
  • UNSPSC: 39111706

CAD

$281.56

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

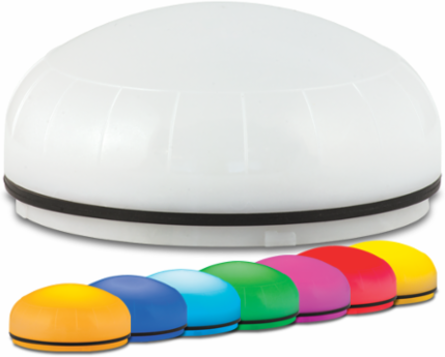

SLM1400 and SLM1450 models are multicolor multifunctional LED beacons engineered for pedestrians, docks, and industrial traffic control. Developed with a multichannel technology, these models allow three separate levels of alarm controllable via wiring selection. For each channel, two integrated buttons allow the user to select a different color (amber, blue, clear, cyan, green, magenta, red, yellow), flash pattern (steady, 1x, 3x, 5x, random flash) and light output brightness (33%, 66%, 100%) for a truly custom application.SLM1400 models include an opaque lens for signaling in close proximities. SLM1450 includes a fresnel lens for farther distance signaling. The body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting SLM Documents or Rev A Tones.

Features

  • Compatible with 12-24VAC/DC or 120-240VAC*
  • PLC compatible with PNP or NPN connections (Except Dock Base, only NPN)
  • Choice of eight colors, five light effects, and three light output levels per channel
  • 100,000 hour LED
  • Seven mounting base options
  • Type 4X, IP66 enclosure
  • IP69K** compliant
  • CE Certified
  • UL and cUL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Italy
Body Color
Gray, Red
Diameter (in)
3.9
Flash Pattern Type
1x Flash Mode 120 (+/-10), 3x Flash Mode 85 (+/-10), 4x Flash Mode 85 (+/-10)
LED Color
Amber, Blue, Clear, Cyan, Green, Magenta, Red, Yellow
Lens Style
Opaque
Operating Temp.
-40˚ to +131˚F (-40˚ to +55˚C)
Visual Signals Model Description
SLM1400-Opaque
Height
1.67 in, 4.2418 cm
Weight0.13 lbs
Certification ListingCE, UL, cUL
Diameter (mm)99.06
AvailabilityIn Stock - Ships in 2 Bus Days
Lens ColorClear
Mount Type2-Stack Dock Base, 3-Stack Dock Base, Deep Base, Shallow Base, Twin Mount, Pipe, Wall
Operating Voltage12-24VAC-DC, 120-240VAC
Depth1.67 in, 4.2418 cm
Diameter3.9 in, 9.906 cm
