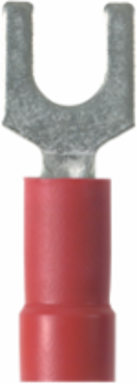

Panduit EV18-8FB-L StrongHold™ EV18-8FB-L Fork Terminal
- MPN: EV18-8FB-L
- UPC: 074983280322
- PPN: PAN-EV18-8FB-L
- UNSPSC: 39121409
CAD
$0.39
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold™ Fork Terminal, vinyl insulated, 22 - 18 AWG, #8 Stud Size.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Color Code
- Red
- Tongue Length (In.)
- 0.47
- Product Type
- Fork Terminal
- Overall Width (mm)
- 8.1
- Tongue Width (mm)
- 8.1
- Barrel Length (In.)
- 0.47
- Minimum Metric Conductor Size (mm²)
- 0.5
- Minimum Voltage (kV)
- 0.6
- Insulation Material
- Vinyl
- Fork Type
- Standard
- Tongue Thickness (mm)
- 0.8
- Wire Strip Length (In.)
- 5/16
- Flammability Rating
- UL 587 H
- Insulation Diameter (mm)
- 3.8
- Maximum Wire Insulation Diameter (In.)
- 0.15
- Maximum Wire Insulation Diameter (mm)
- 3.8
- Overall Length (mm)
- 23.6
- Minimum Voltage (V)
- 600
- Maximum Voltage (kV)
- 0.6
- Overall Length (In.)
- 0.93
- Finish/Coating
- Tin-Plated
- Wire Size
- 22-18 AWG
Any Reason Not to SellN
Overall Width (In.)0.32
Tongue Length (mm)11.8
Stud Hole Size (mm)4.2
Barrel TypeFunnel Entry
Stud SizeM4
Packaging TypeLoose Piece
Maximum Metric Conductor Size (mm²)1
Maximum Operating Temperature (°F)221
Barrel Length (mm)11.8
Maximum Voltage (V)600
Minimum Operating Temperature (°F)221
Stud Hole Size (In.)#8
Tongue Width (In.)0.32
Sub BrandStrongHold™
Maximum Operating Temperature (°C)105
Tongue Thickness (In.)0.03
Wire Strip Length (mm)7.9
Seam TypeButted
For Use With**CT-100A, *CT-160, *CT-260, *CT-400, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)
Minimum Operating Temperature (°C)105
Base MaterialCopper
Insulation Diameter (In.)0.15
Copper Conductor Size22-18 AWG
Packaging Details
- UPC
- 07498328032
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .65
- Std Package Length In
- 4.55
- Std Package Width In
- 2.9
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.35
- Std Ctn Qty
- 500
- EAN
- 00074983280322
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983280322
Standard Package Weight Pounds0.1000
Std Package Height MM16.51
Std Package Length MM115.57
Std Package Width MM73.66
UOM EA PKPK
GTIN Carton50074983280327
Standard Carton Weight Pounds1.0000
Std Carton Height MM111.76
Std Carton Length MM231.14
Std Carton Width MM110.49
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
