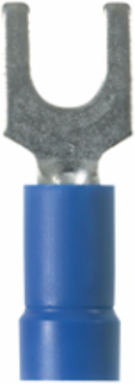

Panduit EV14-8FB-L StrongHold™ EV14-8FB-L Fork Terminal
- MPN: EV14-8FB-L
- UPC: 074983280292
- PPN: PAN-EV14-8FB-L
- UNSPSC: 39121409
CAD
$0.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold™ Fork Terminal, vinyl insulated, 16 - 14 AWG, #8 Stud Size.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Barrel Length (In.)
- 0.45
- For Use With
- CT-100A, *CT-160, *CT-260, *CT-200, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)
- Overall Width (mm)
- 7.9
- Minimum Operating Temperature (°C)
- 105
- Sub Brand
- StrongHold™
- Tongue Width (mm)
- 7.9
- Tongue Thickness (mm)
- 0.8
- Maximum Wire Insulation Diameter (In.)
- 0.17
- Tongue Width (In.)
- 0.31
- Insulation Diameter (mm)
- 4.3
- Tongue Length (mm)
- 11.4
- Minimum Operating Temperature (°F)
- 221
- Packaging Type
- Loose Piece
- Overall Length (mm)
- 22.9
- Barrel Type
- Funnel Entry
- Tongue Length (In.)
- 0.45
- Insulation Diameter (In.)
- 0.17
- Overall Length (In.)
- 0.9
- Maximum Voltage (V)
- 600
- Base Material
- Copper
- Overall Width (In.)
- 0.31
- Copper Conductor Size
- 16-14 AWG
Any Reason Not to SellN
Insulation MaterialVinyl
Wire Strip Length (mm)7.9
Tongue Thickness (In.)0.03
Fork TypeStandard
Minimum Voltage (kV)0.6
Stud SizeM4
Maximum Voltage (kV)0.6
Maximum Metric Conductor Size (mm²)2.5
Product TypeFork Terminal
Stud Hole Size (In.)#8
Barrel Length (mm)11.4
Seam TypeButted
Stud Hole Size (mm)4.2
Minimum Voltage (V)600
Minimum Metric Conductor Size (mm²)1.5
Maximum Wire Insulation Diameter (mm)4.3
Maximum Operating Temperature (°C)105
Flammability RatingUL 587 H
Wire Strip Length (In.)5/16
Finish/CoatingTin-Plated
Color CodeBlue
Maximum Operating Temperature (°F)221
Wire Size16-14 AWG
Packaging Details
- UPC
- 07498328029
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .65
- Std Package Length In
- 4.5
- Std Package Width In
- 2.6
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.15
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 500
- EAN
- 00074983280292
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983280292
Standard Package Weight Pounds0.1000
Std Package Height MM16.51
Std Package Length MM114.3
Std Package Width MM66.04
UOM EA PKPK
GTIN Carton50074983280297
Standard Carton Weight Pounds1.0000
Std Carton Height MM111.76
Std Carton Length MM232.41
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
