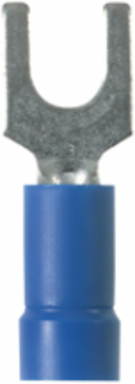

Panduit EV14-8FB-Q StrongHold™ EV14-8FB-Q Loose Piece Forks, Blue, Vinyl, 4/25" Stud, 16-14 AWG
- MPN: EV14-8FB-Q
- UPC: 613056366428
- PPN: PAN-EV14-8FB-Q
- UNSPSC: 39121409
CAD
$0.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold EV14-8FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 16-14 AWG, compatible with #8 Stud (M4), are blue in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Flammability Rating
- UL 587 H
- Barrel Type
- Funnel Entry
- Minimum Operating Temperature (°F)
- 221
- Maximum Metric Conductor Size (mm²)
- 2.5
- Wire Strip Length (mm)
- 7.9
- Overall Width (mm)
- 7.9
- Wire Strip Length (In.)
- 5/16
- For Use With
- CT-100A, *CT-160, *CT-260, *CT-200, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)
- Stud Hole Size (mm)
- 4.2
- Base Material
- Copper
- Barrel Length (In.)
- 0.45
- Sub Brand
- StrongHold™
- Maximum Operating Temperature (°C)
- 105
- Minimum Voltage (V)
- 600
- Color Code
- Blue
- Overall Length (In.)
- 0.9
- Maximum Wire Insulation Diameter (mm)
- 4.3
- Minimum Metric Conductor Size (mm²)
- 1.5
- Packaging Type
- Loose Piece
- Tongue Width (In.)
- 0.31
- Stud Size
- #8
- Copper Conductor Size
- 16-14 AWG
Any Reason Not to SellN
Tongue Thickness (mm)0.8
Maximum Voltage (V)600
Barrel Length (mm)11.4
Tongue Width (mm)7.9
Maximum Wire Insulation Diameter (In.)0.17
Product TypeFork Terminal
Fork TypeStandard
Tongue Length (In.)0.45
Insulation Diameter (In.)0.17
Overall Length (mm)22.9
Overall Width (In.)0.31
Maximum Operating Temperature (°F)221
Minimum Operating Temperature (°C)105
Insulation Diameter (mm)4.3
Tongue Thickness (In.)0.03
Tongue Length (mm)11.4
Seam TypeButted
Maximum Voltage (kV)0.6
Minimum Voltage (kV)0.6
Insulation MaterialVinyl
Stud Hole Size (In.)#8
Finish/CoatingTin-Plated
Wire Size16-14 AWG
Packaging Details
- UPC
- 61305636642
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .65
- Std Package Length In
- 4.6
- Std Package Width In
- 2.65
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 250
- EAN
- 00613056366428
- Mercury Content Indicator
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00613056366428
Standard Package Weight Pounds0.0500
Std Package Height MM16.51
Std Package Length MM116.84
Std Package Width MM67.31
UOM EA PKPK
GTIN Carton50613056366423
Standard Carton Weight Pounds0.5000
Std Carton Height MM111.76
Std Carton Length MM231.14
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
