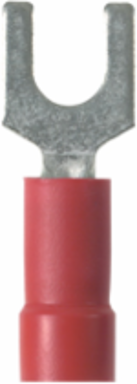

Panduit EV18-6FB-Q StrongHold™ EV18-6FB-Q Loose Piece Forks, Red, Vinyl, 1/8" Stud, 22-18 AWG, PK25
- MPN: EV18-6FB-Q
- UPC: 613056366442
- PPN: PAN-EV18-6FB-Q
- UNSPSC: 39121409
CAD
$0.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold EV18-6FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 22-18 AWG, compatible with #6 Stud (M3.5), are red in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Fork Type
- Standard
- Maximum Voltage (kV)
- 0.6
- Overall Width (In.)
- 0.3
- Tongue Length (mm)
- 10.9
- Overall Width (mm)
- 7.6
- Finish/Coating
- Tin-Plated
- Insulation Diameter (In.)
- 0.15
- Product Type
- Fork Terminal
- Barrel Length (In.)
- 0.43
- Tongue Width (mm)
- 7.6
- Stud Size
- #6
- Minimum Operating Temperature (°F)
- 221
- Tongue Thickness (mm)
- 0.8
- Stud Hole Size (In.)
- #6
- Sub Brand
- StrongHold™
- Minimum Voltage (kV)
- 0.6
- Overall Length (In.)
- 0.86
- Wire Strip Length (In.)
- 5/16
- Packaging Type
- Loose Piece
- Tongue Thickness (In.)
- 0.03
- Stud Hole Size (mm)
- 3.2
- Copper Conductor Size
- 22-18 AWG
Any Reason Not to SellN
Flammability RatingUL 587 H
Tongue Length (In.)0.43
Minimum Voltage (V)600
Overall Length (mm)21.8
For Use With**CT-100A, *CT-160, *CT-260, *CT-400, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)
Minimum Metric Conductor Size (mm²)0.5
Maximum Operating Temperature (°F)221
Maximum Wire Insulation Diameter (In.)0.15
Seam TypeButted
Barrel Length (mm)10.9
Maximum Operating Temperature (°C)105
Base MaterialCopper
Insulation Diameter (mm)3.8
Maximum Voltage (V)600
Barrel TypeFunnel Entry
Maximum Wire Insulation Diameter (mm)3.8
Wire Strip Length (mm)7.9
Color CodeRed
Insulation MaterialVinyl
Minimum Operating Temperature (°C)105
Maximum Metric Conductor Size (mm²)1
Tongue Width (In.)0.3
Wire Size22-18 AWG
Packaging Details
- UPC
- 61305636644
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .7
- Std Package Length In
- 4.55
- Std Package Width In
- 2.9
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.35
- Std Ctn Qty
- 250
- EAN
- 00613056366442
- Mercury Content Indicator
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00613056366442
Standard Package Weight Pounds0.0700
Std Package Height MM17.78
Std Package Length MM115.57
Std Package Width MM73.66
UOM EA PKPK
GTIN Carton50613056366447
Standard Carton Weight Pounds0.7000
Std Carton Height MM111.76
Std Carton Length MM231.14
Std Carton Width MM110.49
Min. Order UOMPiece
REACH StatusN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
