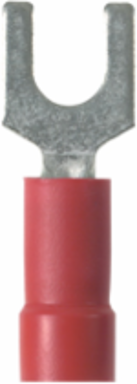

Panduit EV18-6FB-L StrongHold™ EV18-6FB-L Fork Terminal
- MPN: EV18-6FB-L
- UPC: 074983280315
- PPN: PAN-EV18-6FB-L
- UNSPSC: 39121409
CAD
$0.39
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold™ Fork Terminal, vinyl insulated, 22 - 18 AWG, #6 Stud Size.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Maximum Operating Temperature (°F)
- 221
- Minimum Voltage (V)
- 600
- Minimum Metric Conductor Size (mm²)
- 0.5
- Stud Hole Size (In.)
- #6
- Tongue Width (mm)
- 7.6
- Color Code
- Red
- Insulation Diameter (In.)
- 0.15
- Maximum Operating Temperature (°C)
- 105
- Wire Strip Length (mm)
- 7.9
- Maximum Voltage (kV)
- 0.6
- Tongue Length (In.)
- 0.43
- Insulation Material
- Vinyl
- Maximum Voltage (V)
- 600
- Minimum Operating Temperature (°F)
- 221
- Tongue Thickness (In.)
- 0.03
- Overall Width (In.)
- 0.3
- Tongue Thickness (mm)
- 0.8
- Maximum Metric Conductor Size (mm²)
- 1
- Overall Length (mm)
- 21.8
- Seam Type
- Butted
- Stud Size
- M3
- Wire Size
- 22-18 AWG
Any Reason Not to SellN
Product TypeFork Terminal
Sub BrandStrongHold™
Fork TypeStandard
Base MaterialCopper
Tongue Width (In.)0.3
Stud Hole Size (mm)3.2
Overall Length (In.)0.86
Tongue Length (mm)10.9
Wire Strip Length (In.)5/16
Minimum Voltage (kV)0.6
Barrel TypeFunnel Entry
For Use With**CT-100A, *CT-160, *CT-260, *CT-400, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)
Barrel Length (mm)10.9
Barrel Length (In.)0.43
Finish/CoatingTin-Plated
Flammability RatingUL 587 H
Overall Width (mm)7.6
Packaging TypeLoose Piece
Maximum Wire Insulation Diameter (mm)3.8
Insulation Diameter (mm)3.8
Maximum Wire Insulation Diameter (In.)0.15
Minimum Operating Temperature (°C)105
Copper Conductor Size22-18 AWG
Packaging Details
- UPC
- 07498328031
- Standard Package Volume Ft3
- 0.0100
- Std Package Height In
- .85
- Std Package Length In
- 4.55
- Std Package Width In
- 2.45
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.0996
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.45
- Std Ctn Qty
- 500
- EAN
- 00074983280315
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983280315
Standard Package Weight Pounds0.1400
Std Package Height MM21.59
Std Package Length MM115.57
Std Package Width MM62.23
UOM EA PKPK
GTIN Carton50074983280310
Standard Carton Weight Pounds1.4000
Std Carton Height MM110.49
Std Carton Length MM231.14
Std Carton Width MM113.03
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
