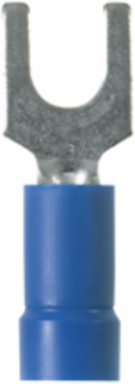

Panduit EV14-10FB-L StrongHold™ EV14-10FB-L Fork Terminal
- MPN: EV14-10FB-L
- UPC: 074983280308
- PPN: PAN-EV14-10FB-L
- UNSPSC: 39121409
CAD
$0.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold™ Fork Terminal, vinyl insulated, 16 - 14 AWG, #10 Stud Size.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Stud Hole Size (In.)
- #10
- Color Code
- Blue
- Barrel Length (In.)
- 0.46
- Wire Strip Length (In.)
- 5/16
- Maximum Voltage (kV)
- 0.6
- Sub Brand
- StrongHold™
- Overall Width (In.)
- 0.34
- Overall Length (In.)
- 0.92
- Tongue Length (In.)
- 0.46
- Stud Hole Size (mm)
- 4.8
- Seam Type
- Butted
- Insulation Material
- Vinyl
- Minimum Metric Conductor Size (mm²)
- 1.5
- For Use With
- CT-100A, *CT-160, *CT-260, *CT-200, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)
- Maximum Operating Temperature (°F)
- 221
- Packaging Type
- Loose Piece
- Stud Size
- #10
- Finish/Coating
- Tin-Plated
- Flammability Rating
- UL 587 H
- Overall Width (mm)
- 8.6
- Tongue Width (mm)
- 8.6
- Wire Size
- 16-14 AWG
Any Reason Not to SellN
Product TypeFork Terminal
Minimum Operating Temperature (°C)105
Base MaterialCopper
Maximum Voltage (V)600
Overall Length (mm)23.4
Maximum Wire Insulation Diameter (mm)4.3
Maximum Operating Temperature (°C)105
Fork TypeStandard
Maximum Metric Conductor Size (mm²)2.5
Barrel TypeFunnel Entry
Insulation Diameter (mm)4.3
Minimum Voltage (V)600
Tongue Width (In.)0.34
Maximum Wire Insulation Diameter (In.)0.17
Minimum Voltage (kV)0.6
Tongue Thickness (mm)0.8
Tongue Thickness (In.)0.03
Tongue Length (mm)11.7
Wire Strip Length (mm)7.9
Insulation Diameter (In.)0.17
Barrel Length (mm)11.7
Minimum Operating Temperature (°F)221
Copper Conductor Size16-14 AWG
Packaging Details
- UPC
- 07498328030
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- 1.1
- Std Package Length In
- 4.5
- Std Package Width In
- 2.95
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.45
- Std Ctn Qty
- 500
- EAN
- 00074983280308
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983280308
Standard Package Weight Pounds0.1000
Std Package Height MM27.94
Std Package Length MM114.3
Std Package Width MM74.93
UOM EA PKPK
GTIN Carton50074983280303
Standard Carton Weight Pounds1.0000
Std Carton Height MM111.76
Std Carton Length MM231.14
Std Carton Width MM113.03
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
