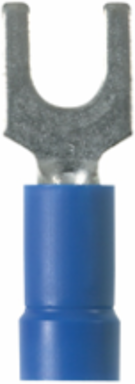

Panduit EV14-6FB-Q StrongHold™ EV14-6FB-Q Loose Piece Forks, Blue, Vinyl, 1/8" Stud, 16-14 AWG
- MPN: EV14-6FB-Q
- UPC: 613056366381
- PPN: PAN-EV14-6FB-Q
- UNSPSC: 39121409
CAD
$0.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold EV14-6FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 16-14 AWG, compatible with #6 Stud (M3.5), are blue in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Tongue Thickness (In.)
- 0.03
- Tongue Length (In.)
- 0.42
- For Use With
- CT-100A, *CT-160, *CT-260, *CT-200, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)
- Flammability Rating
- UL 587 H
- Barrel Length (In.)
- 0.42
- Base Material
- Copper
- Barrel Type
- Funnel Entry
- Stud Size
- #6
- Insulation Diameter (In.)
- 0.17
- Insulation Material
- Vinyl
- Minimum Operating Temperature (°C)
- 105
- Tongue Width (mm)
- 7.1
- Maximum Voltage (V)
- 600
- Fork Type
- Standard
- Barrel Length (mm)
- 10.7
- Maximum Wire Insulation Diameter (mm)
- 4.3
- Packaging Type
- Loose Piece
- Insulation Diameter (mm)
- 4.3
- Tongue Length (mm)
- 10.7
- Wire Strip Length (mm)
- 7.9
- Maximum Voltage (kV)
- 0.6
- Copper Conductor Size
- 16-14 AWG
Any Reason Not to SellN
Color CodeBlue
Maximum Operating Temperature (°F)221
Overall Length (mm)21.3
Stud Hole Size (mm)3.2
Minimum Voltage (V)600
Overall Width (In.)0.28
Maximum Wire Insulation Diameter (In.)0.17
Wire Strip Length (In.)5/16
Stud Hole Size (In.)#6
Maximum Operating Temperature (°C)105
Tongue Width (In.)0.28
Minimum Operating Temperature (°F)221
Product TypeFork Terminal
Minimum Voltage (kV)0.6
Finish/CoatingTin-Plated
Seam TypeButted
Overall Width (mm)7.1
Maximum Metric Conductor Size (mm²)2.5
Tongue Thickness (mm)0.8
Overall Length (In.)0.84
Sub BrandStrongHold™
Minimum Metric Conductor Size (mm²)1.5
Wire Size16-14 AWG
Packaging Details
- UPC
- 61305636638
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .65
- Std Package Length In
- 4.6
- Std Package Width In
- 2.7
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 250
- EAN
- 00613056366381
- Mercury Content Indicator
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00613056366381
Standard Package Weight Pounds0.0500
Std Package Height MM16.51
Std Package Length MM116.84
Std Package Width MM68.58
UOM EA PKPK
GTIN Carton50613056366386
Standard Carton Weight Pounds0.5000
Std Carton Height MM110.49
Std Carton Length MM231.14
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
