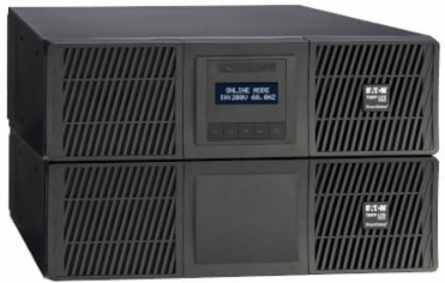

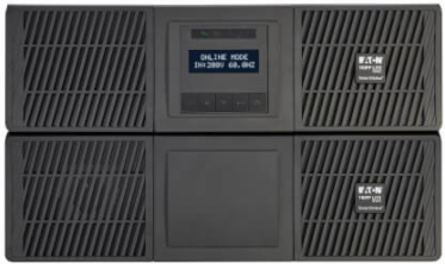

Tripp Lite SU5000RTF SmartOnline 5000VA 4500W 120/208V Online Double-Conversion UPS with Stepdown Transformer - 18 5-20R, 2 L6-20R and 1 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 6U
- MPN: SU5000RTF
- UPC: 037332286352
- PPN: TRP-SU5000RTF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartOnline 5000VA 4500W 120/208V Online Double-Conversion UPS with Stepdown Transformer - 18 5-20R, 2 L6-20R and 1 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 6U
Features

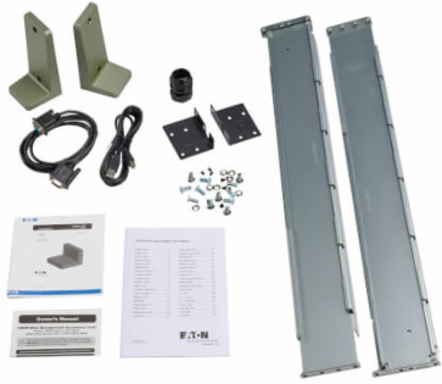

- 5000VA 4500W 208V Double-Conversion UPS
- SUTFMR 120V stepdown transformer
- WEBCARDLXE network card
- USB cable
- RS-232 cable
- Tower support stands
- Cable gland for hardwire connection

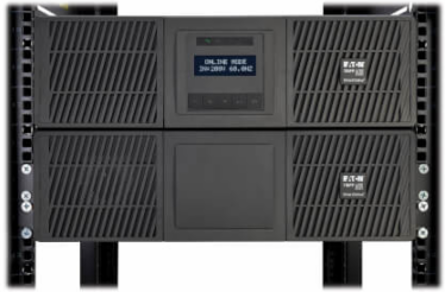

- Rack-mounting hardware for UPS and transformer (2x 9RK)
- Quick start guide
Documentation & Downloads
Specifications
Performance
| UPS Type | On-Line |
|---|---|
| Input Phase | Single-Phase |
| Maximum Input Amps | 23 |
| Nominal Voltage Details | 100V, 110V, 120V, 200V, 208V, 220V, 230V, 240V |
| Frequency Compatibility Details | 50 or 60Hz, autosensing or configurable as a frequency converter |
| Output Receptacle Details | Hardwire output: 200-240V |
| Output AC Waveform | Pure Sine wave |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Operating Elevation | 0-3280 ft. (0-1000 m) |
| Output Capacity | 5000 VA |
|---|---|
| Rated Input Current | 23.3A |
| Input Circuit Breakers | Recommended 30A upstream |
| Frequency Compatibility | 50 / 60 Hz |
| Output Voltage Regulation | +/- 1% |
| Output Circuit Breakers | 20A breaker protects L6-20R and 5-20R outlets |
| AC Mode Efficiency Rating | 93% |
| Relative Humidity | 0-95% non-condensing |
| Audible Noise | <45 dB at 1 meter |
Dimensions
| UPS Input Connection Type | Hardwire; L6-30P |
|---|---|
| UPS Input Cord Length | 10 ft |

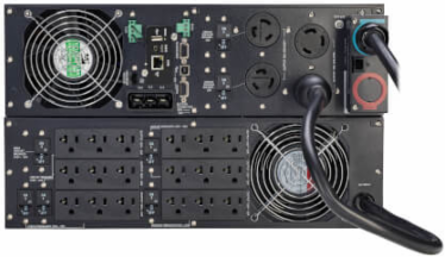

| Output Receptacles | (18) 5-20R; (1) Hardwire (200-240V); (2) L6-20R; (1) L6-30R |
| Primary Form Factor | Rackmount; Tower |
| UPS Power Module Weight | 48.08 lb |
| Unit Weight | 201.000 lb |
| Communications Interface | (1) Contact closure; (1) Included network card; (1) RS-232; (1) USB |
| Input Plug Type | NEMA L6-30P |
|---|---|
| Recommended Electrical Service | 30A |
| DC System Voltage | 180V |
| Minimum Required Rack Depth | 31 in |
| Unit Dimensions | 10.200 x 17.300 x 27.030 in |
| Network Management Cards | (1) WEBCARDLXE (included) |
Compliance
| Product Warranty Period | 2-year limited warranty |
|---|
Material
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|---|
| Cooling Method | Fan |
| UPS Housing Material | Metal |
|---|
