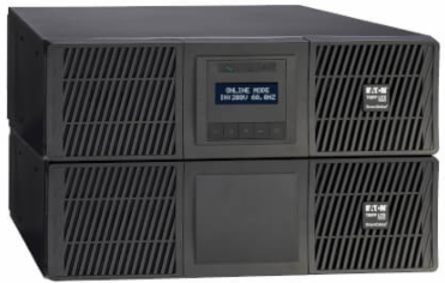

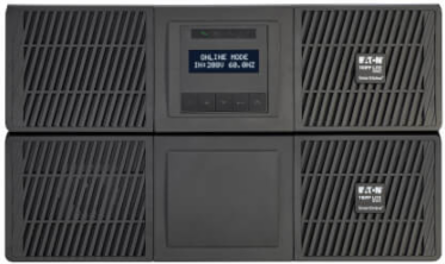

Tripp Lite SU6000RTF SmartOnline 6000VA 5400W 120/208V Online Double-Conversion UPS with Stepdown Transformer - 18 5-20R, 2 L6-20R and 1 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 6U
- MPN: SU6000RTF
- UPC: 037332286376
- PPN: TRP-SU6000RTF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartOnline 6000VA 5400W 120/208V Online Double-Conversion UPS with Stepdown Transformer - 18 5-20R, 2 L6-20R and 1 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 6U

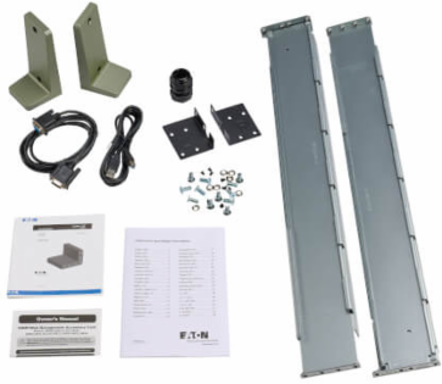

Features
- 6000VA 5400W 208V Double-Conversion UPS
- SUTFMR 120V stepdown transformer
- WEBCARDLXE network card
- USB cable
- RS-232 cable
- Tower support stands
- Cable gland for hardwire connection
- Rack-mounting hardware for UPS and transformer (2x 9RK)
- Quick start guide
Documentation & Downloads
Specifications
Dimensions
- UPS Input Connection Type
- Hardwire; L6-30P
- UPS Input Cord Length
- 10 ft
- Primary Form Factor

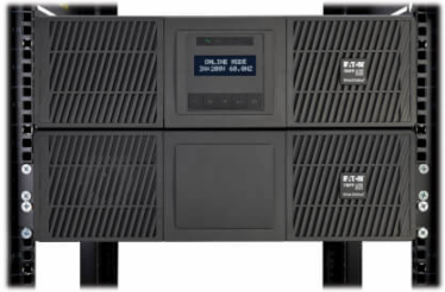

- Rackmount; Tower, 6U
- Unit Dimensions
- 10.200 x 17.300 x 27.030 in
- UPS Power Module Weight
- 48.08 lb
Input Plug TypeNEMA L6-30P

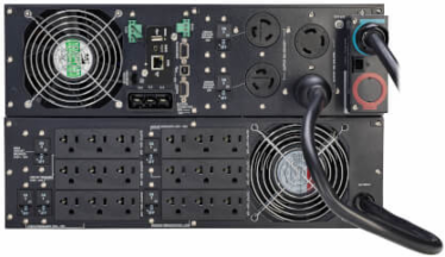

Output Receptacles(18) 5-20R; (1) Hardwire (200-240V); (2) L6-20R; (1) L6-30R
Minimum Required Rack Depth31 in
Unit Weight201.000 lb
Cooling MethodFan
Material
- UPS Housing Material
- Metal
- DC System Voltage
- 180 VDC
Battery TypeValve Regulated Lead Acid (VRLA)
Compliance
- Product Warranty Period
- 2-Year Limited Warranty
Reference
- UPS Applications
- Mission Critical Applications
Performance
- UPS Type
- On-Line
- Output Capacity Details
- 230/240V: 5400 watts; 220V: 5100 watts; 208V: 4800 watts; 200V: 4600 watts
- Rated Input Current
- 24.8A
- Recommended Electrical Service
- 30A
- Frequency Compatibility Details
- 50 or 60Hz, autosensing or configurable as a frequency converter
- Output Voltage Regulation
- ±1%
- Output Circuit Breakers
- 20A breaker protects L6-20R and 5-20R outlets
- Voltage Regulation Description
- Online, double-conversion power conditioning
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Operating Elevation
- 0-3280 ft (0-1000 m)
Output Capacity6000 VA
Input PhaseSingle-Phase
Maximum Input Amps25 A
Frequency Compatibility50 / 60 Hz
Nominal Voltage Details100V, 110V, 120V, 200V, 208V, 220V, 230V, 240V
Output Receptacle DetailsHardwire output: 200-240V
Output AC WaveformPure Sine Wave
AC Mode Efficiency Rating93%
Relative Humidity0-95% non-condensing
Audible Noise<45 dB at 1 meter
