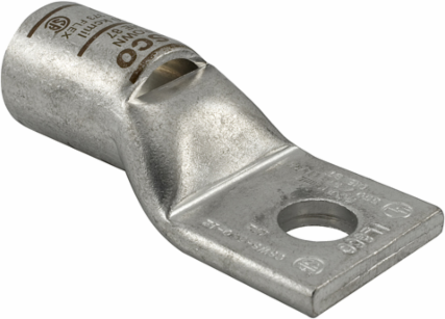

ILSCO CSWS-1-14 Surecrimp Copper Compression Lug, Conductor Size 1, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CSWS-1-14
- UPC: 783669634334
- PPN: ILC-CSWS-1-14
CAD
$13.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Surecrimp Copper Compression Lug, Conductor Size 1, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.499 in | 12.6746 mm |
|---|---|
| Weight | 0.0390680720402893 lbs |
| Length | 1.83 in | 46.482 mm |
|---|---|
| Width | 0.673 in | 17.0942 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Barrel Length (IN) | 0.625 |
|---|---|
| Dimension G (IN) | 0.321 |
| Height BX (IN) | 2.25 |
| Inside Diameter (IN) | 0.359 |
| Length (mm) | 46.482 |
| Mounting Hole Diameter (mm) | 7.1374 |
| Outside Diameter (IN) | 0.469 |
| Strip Length (mm) | 17.4498 |
| Tang Length (mm) | 22.225 |
| Tang Thickness (mm) | 2.794 |
| Tang Width (mm) | 17.0942 |
| Width BX (IN) | 5 |
| Barrel Length (mm) | 15.875 |
|---|---|
| Dimension G (mm) | 8.1534 |
| Height (mm) | 12.6746 |
| Inside Diameter (mm) | 9.1186 |
| Mounting Hole Diameter (IN) | 0.281 |
| Mounting Hole Spacing (mm) | 0 |
| Outside Diameter (mm) | 11.9126 |
| Tang Length (IN) | 0.875 |
| Tang Thickness (IN) | 0.11 |
| Tang Width (IN) | 0.673 |
| Weight BX (LB) | 1.295 |
| Width (mm) | 17.0942 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| NEBS Rating | Level 3 |
| ROHS Indicator | IND |
| UL / CULUS Specification | UL 486A/B Listed, UL 467 Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Barrel Marking | Ink |
|---|---|
| Connecting Angle | 180° |
| Contains DE-OX® | No |
| ILSCOs Die Catalog Number | ILD-37 |
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Slotted | No |
| Undrilled | No |
| Barrel Type | Standard |
|---|---|
| Connection | Compression |
| Flared End | No |
| ILSCOs Die Index Number | I-37 |
| Narrow Tang | No |
| Sight Window | Yes |
| Tang End Shape | Square |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 1 Str |
|---|---|
| Flex Conductor Range | 2 G,H,I,K,M,DLO |
| Expanded Conductor Range | 1 Str - 6 Str |
|---|
Additional Technical Specifications
| Conductor Type | Flex, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 10 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366963433 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/4 |
|---|
Color
| Color | Silver |
|---|
| Color Code | Green |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
