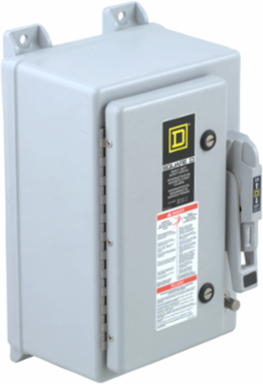

Square D HU364DF Heavy Duty Safety Switch 200A 3-Phase NEMA 4X Fiberglass, 31.3 Inch Width
- MPN: HU364DF
- UPC: 785901627937
- PPN: SCH-HU364DF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust electrical management, this heavy-duty safety switch by Schneider Electric is ideal for demanding environments. Its 200A capacity and three-phase configuration ensure reliable performance, while the NEMA 4X fiberglass enclosure provides exceptional protection against water, dust, and corrosion. With a width of 31.3 inches, this switch is designed for easy integration into existing power distribution systems, making it a critical component for maintaining safety in industrial applications.
Documentation & Downloads
Specifications
Key Specifications
- Disconnector Device Type
- non-fusible disconnect
- Network Number Of Phases
- 3 phases
- Nema Degree Of Protection
- NEMA 4X fiberglass reinforced polyester
- Device Composition
- none
- Number Of Poles
- 3
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
[In] Rated Current200 A
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary
- Height
- 26.3 in
- Tightening Torque
- 275-275 lbf.in 13.3-127 mm² AWG 6...250 kcmil)
- Electrical Connection
- lugs
- Width
- 31.3 in
- Depth
- 11.8 in
Device Mountingsurface
Net Weight40.37 kg
Awg GaugeAWG 6...250 kcmil copper or aluminum
Wiring Configuration3-wire
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305005EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Circularity ProfileN/A
