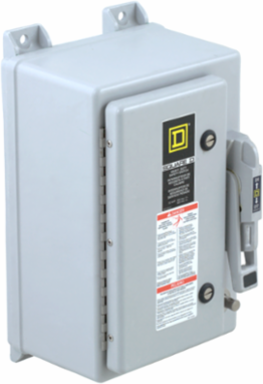

Square D HU363DF 100A Non-Fusible Disconnect Switch, 3 Poles, NEMA 4X, 24.78 Inch Height
- MPN: HU363DF
- UPC: 785901627913
- PPN: SCH-HU363DF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust performance, the non-fusible disconnect switch from Schneider Electric is designed to meet the demands of heavy applications while ensuring safety and reliability. With a height of 24.78 inches and a width of 13.7 inches, this switch features a durable NEMA 4X fiberglass reinforced polyester construction, making it suitable for challenging environments. Rated for 100A and capable of handling up to 600V AC/DC across three poles, it provides a reliable means of isolating electrical circuits. Additionally, this product is UL listed and compliant with various environmental standards, reflecting Schneider Electric's commitment to sustainability and safety in power distribution solutions.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 4X fiberglass reinforced polyester
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 3
Disconnector Device Typenon-fusible disconnect
[In] Rated Current100 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary
- Height
- 24.78 in
- Tightening Torque
- 50-50 lbf.in AWG 1...AWG 3/0) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 35-35 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Awg Gauge
- AWG 12...AWG 1/0 aluminum || AWG 14...AWG 1/0 copper
- Wiring Configuration
- 3-wire
- Net Weight
- 18.14 kg
Device Mountingsurface
Electrical Connectionlugs
Width13.7 in
Depth12 in
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
