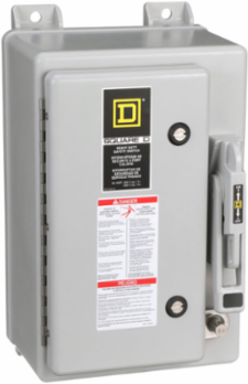

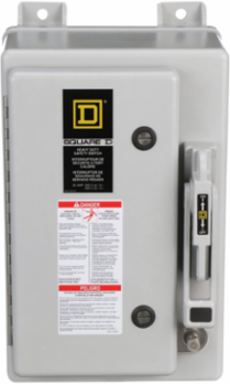

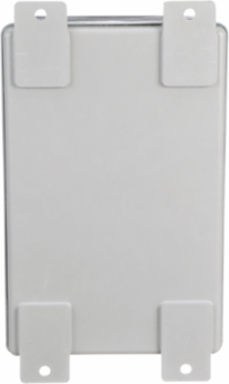

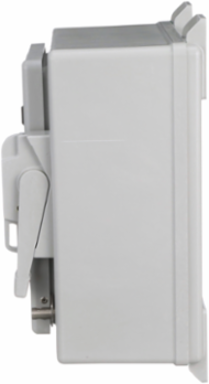

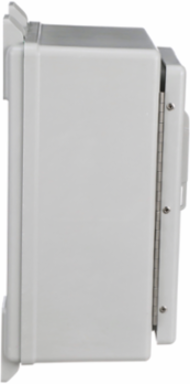

Square D HU361DF Heavy Duty Safety Switch, 30A 3P, NEMA 4X Fiberglass Enclosure
- MPN: HU361DF
- UPC: 785901627890
- PPN: SCH-HU361DF
CAD
$4420.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This heavy-duty safety switch from Schneider Electric is engineered for reliable performance in demanding environments. Featuring a robust 30A, 3-pole configuration, it provides effective disconnect capabilities, ensuring safety in power distribution applications. Encased in a NEMA 4X fiberglass enclosure, it offers enhanced protection against moisture and corrosive elements, making it ideal for industrial settings. This switch not only meets stringent safety standards but also delivers durability and ease of use, making it an essential component for safe electrical installations.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 4X fiberglass reinforced polyester
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 3
Disconnector Device Typenon-fusible disconnect
[In] Rated Current30 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary
- Height
- 16.5 in
- Tightening Torque
- 45-45 lbf.in 13.3-13.3 mm² AWG 6) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 35-35 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Awg Gauge
- AWG 12...AWG 6 aluminum || AWG 14...AWG 6 copper
- Wiring Configuration
- 3-wire
- Net Weight
- 9.53 kg
Device Mountingsurface
Electrical Connectionlugs
Width11 in
Depth8.8 in
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
