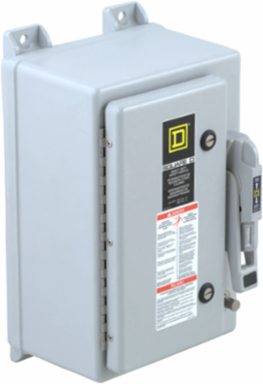

Heavy Duty Safety Switch 60A 3 Phase NEMA 4X Fiberglass, 16.5 Inch Height, 11 Inch Width
Square D

Square D HU362DF Heavy Duty Safety Switch 60A 3 Phase NEMA 4X Fiberglass, 16.5 Inch Height, 11 Inch Width

  • MPN: HU362DF
  • UPC: 785901627906
  • PPN: SCH-HU362DF

CAD

$4706.75

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Designed for robust performance in demanding environments, this heavy-duty safety switch from Schneider Electric is engineered to handle 60 amps across three phases with efficiency and reliability. Its NEMA 4X fiberglass construction ensures superior protection against water and dust, making it ideal for outdoor installations or locations where exposure to the elements is a concern. With a compact size of 16.5 inches in height and 11 inches in width, this safety switch not only meets industrial standards but also provides ease of installation, ensuring it can be seamlessly integrated into your power distribution system. Perfect for applications that require dependable disconnect solutions, this product stands out with its combination of durability and practicality.

Documentation & Downloads

Specifications

Key Specifications

Series Name
heavy duty
Nema Degree Of Protection
NEMA 4X fiberglass reinforced polyester
Product Or Component Type
Single Throw Safety Switch
Network Number Of Phases
3 phases
Number Of Poles
3
Disconnector Device Typenon-fusible disconnect
[In] Rated Current60 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC

Complementary

Height
16.5 in
Tightening Torque
50-50 lbf.in AWG 3) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 50-50 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
Awg Gauge
AWG 14...AWG 3 copper || AWG 12...AWG 3 aluminum
Wiring Configuration
3-wire
Net Weight
9.98 kg
Device Mountingsurface
Electrical Connectionlugs
Width11 in
Depth8.8 in

Environment

Product Certifications
UL listed file E2875

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2305006EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
