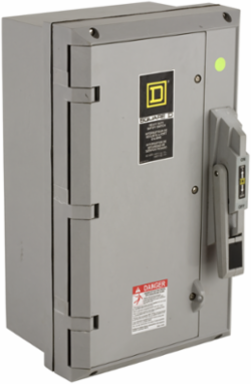

Square D HU362DX Heavy Duty Non-Fusible Safety Switch, 60A, 3 Pole, NEMA 4X, 19.4 Inch Height
- MPN: HU362DX
- UPC: 785901549123
- PPN: SCH-HU362DX
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for robust applications, the Heavy Duty Non-Fusible Safety Switch from Schneider Electric offers reliable performance and safety in demanding environments. With a 60A capacity and a three-pole configuration, this switch is engineered to handle heavy electrical loads, ensuring efficient power distribution. Its NEMA 4X rated enclosure, constructed from compression molded fiberglass reinforced polyester, provides exceptional protection against dust and moisture, making it ideal for outdoor or harsh industrial settings. Measuring 19.4 inches in height, this switch not only meets stringent environmental standards but also supports sustainable practices, being classified as a Green Premium product. With easy surface mounting and UL certification, it is a dependable choice for professionals seeking durability and safety in their electrical installations.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 4X Krydon - compression molded fiberglass reinforced polyester
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 3
Disconnector Device Typenon-fusible disconnect
[In] Rated Current60 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary
- Height
- 19.4 in
- Tightening Torque
- 50-50 lbf.in AWG 3) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 50-50 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Awg Gauge
- AWG 14...AWG 3 copper || AWG 12...AWG 3 aluminum
- Width
- 11.4 in
- Net Weight
- 17.2 kg
Device Mountingsurface
Electrical Connectionlugs
Wiring Configuration3-wire
Depth8.6 in
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
