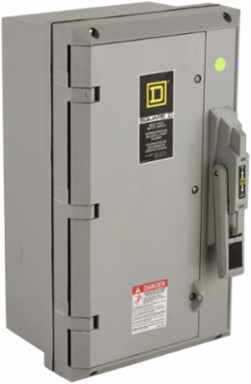

Square D HU363DX Heavy Duty 100A 3-Phase NEMA 4X Safety Switch, 25.25 Inch Height, 600 V AC/DC
Square D HU363DX Heavy Duty 100A 3-Phase NEMA 4X Safety Switch, 25.25 Inch Height, 600 V AC/DC
- MPN: HU363DX
- UPC: 785901549130
- PPN: SCH-HU363DX
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust performance, the Heavy Duty Safety Switch from Schneider Electric is designed to handle demanding applications with ease. With a rated current of 100A and a voltage capability of 600V AC/DC, this non-fusible disconnect switch ensures reliable electrical isolation in a variety of environments. Its NEMA 4X rated enclosure, made from compression molded fiberglass reinforced polyester, offers superior protection against dust, moisture, and corrosion, making it ideal for outdoor installations or harsh industrial settings. The switch features a compact design with a height of 25.25 inches and is UL listed, ensuring compliance with rigorous safety standards. With its durable construction and thoughtful design, this safety switch is a dependable choice for power distribution needs.
Specifications
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 25.25 in
- Tightening Torque
- 50-50 lbf.in AWG 1...AWG 3/0) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 35-35 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Awg Gauge
- AWG 12...AWG 1/0 aluminum || AWG 14...AWG 1/0 copper
- Wiring Configuration
- 3-wire
- Net Weight
- 17.2 kg
Device Mountingsurface
Electrical Connectionlugs
Width11.4 in
Depth8.6 in
Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 4X Krydon - compression molded fiberglass reinforced polyester
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 3
Disconnector Device Typenon-fusible disconnect
[In] Rated Current100 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
