Square D 9421V1W30 TeSys Vario Manual Motor Switch 20A 3 Pole 10HP at 480V
Square D 9421V1W30 TeSys Vario Manual Motor Switch 20A 3 Pole 10HP at 480V
- MPN: 9421V1W30
- UPC: 785901909408
- PPN: SCH-9421V1W30
- UNSPSC: 39122233
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1121.38/ EA
Description

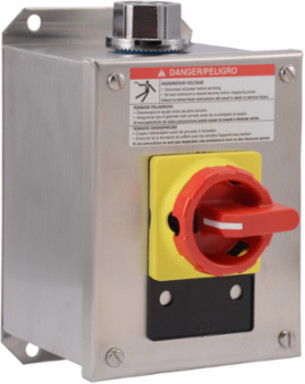

Vario manual motor control switches meet UL508 requirements as both enclosed and open manual motor controllers. They are also marked “Suitable as Motor Disconnect” allowing installation on the load side of the motor branch circuit short circuit and ground fault protection. These manual motor control switches include switches mounted in enclosure with a handle. The switch has a 20A current rating and a 5 HP at 240 V, 10 HP at 480V and a 10 HP at 600V ratings per UL508. The switch has a 32A current rating and a 5.5 kW at 230V and 240 V, 11 kW at 400V 415V and 500V and a 15 kW at 690V ratings per IEC. A KCF1YZ low profile handle is used for this device. This 60 mm by 60 mm four hole mount handle assembly has a red handle and yellow bezel. This switch is mounted in a NEMA Type 4/4X enclosure made of 304 stainless steel. It is for indoor use only. This manual motor control switch is 7.38 inches tall, 5.50 inches wide and 6.25 inches deep. This switch has no auxiliary contacts. This manual motor control switch is UL Listed and CSA certified.
Features
- Used with all disconnect switch and circuit breaker installations
- Designed for variable depth, flange mounting applications
- Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
- Two mounting methods offered for flexibility
- Disconnect switches were designed for control panel installations
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Serviceability
- No
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- ROHS EUR Full Compliance Status
- Under investigation
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Package Weight Lbs
- 2.118 kg
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
TraceabilityNo
Scope PerimeterAt least in Europe
ROHS EUR In ScopeYes
ROHS EUR Full Compliance Status IdUNDER_INVESTIGATION
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Sustainable PackagingNo
Medium DescManual Motor Switch, TeSys Vario, rotary handle, 20A, 3 pole, 10HP at 480V, metallic enclosure, UL Type 4/4X
Product Kit IdentifierN
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- Yes
Take BackNo
EU ROHS DirectiveUnder investigation
Packaging Without Single Use PlasticYes
