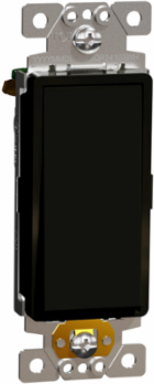

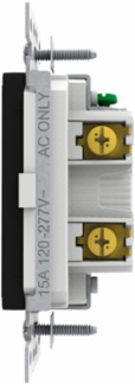

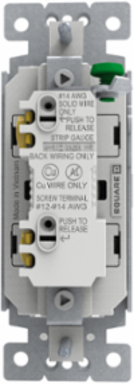

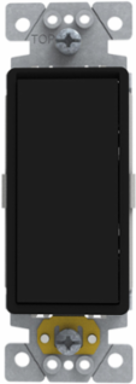

Schneider Electric SQR14101BK Switch, X Series, 15A, single pole, 1 way, black
- MPN: SQR14101BK
- PPN: SCH-SQR14101BK
CAD
$4.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric X Series 15A Single-Pole Switch with side wire clamps. The rated operational voltage of this switch is 120V and 277V. Its matching mounting box can be recessed into the surface of the wall for flush mounting. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. The connection is screw terminals.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Vietnam
Physical Attributes
- Color
- Black
- Main Color Tint
- black
Color Tintblack
Important Information Attributes
- X Main Color Tint
- black
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.048114454440902905
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.2519220713487557
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Aesthetic Name
- X Series
- Earth Circuit
- self earthing
- Market Segment
- residential
- Mounting Mode
- by screws
- Network Type
- AC
- Number Of Modules
- 1
- Number Of Rocker
- 1
- Product Or Component Type
- switch
- Returnability
- Yes
- Surface Finish
- Matte
- Switch Function
- 1-way
- Total Lifecycle Carbon Footprint
- 0.5 kg CO2 eq.
- Main Color Tint
- black
- Pep Code
- ENVPEP2606004EN
- Pep Verification Date
- 2026-07-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Energy Model - Manufacturing [A1-a3]
- Electricity mix; Production mix; low voltage; 2022; Vietnam, VN
- Energy Model - Use [B6]
- Electricity mix; Consumption mix; Low voltage; 2022; United States, US
- Recyclability Potential In %
- 33
- [Ie] Rated Operational Current Ac
- 15 A
- Connections - Terminals
- phase and neutral 2 screw terminal 14 AWG...12 AWG) copper
- Package Weight(Lbs)
- 83.3 g
- Warranty (In Months)
- 24
Carbon Footprint Of The Distribution Phase [A4]0.05368753338917287, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.053311690501898115, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.08261325771771208
Local Publishable Date2026-06-23
Stocking FlagY
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Actuatorrocker
Device Applicationcontrol
Energy Efficiency OptimizedFalse
Materialplastic: strap
Network Frequency60 Hz
Number Of Gangs1 gang
Number Of Poles1
Product AvailabilityStock - Normally stocked in distribution facility
RangeSquare D X Series
Software Versionv6.3.4
Sustainable PackagingNo
Targeted Channeldistributor
Color Tintblack
Ac Current Rating15 A
Database Version2026-04
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish, support and interrupt the rated current I and rated voltage U for a wall-mounted installation, and for the reference service life of the product of 20 years.N/A
Functional-unit Unitunit
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Certificate AgencycULus
[Ue] Rated Operational Voltage120 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.48964900739844164
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2606004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Reach RegulationFree of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2606004EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep Verification Date2026-07-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- switch
Contractual Warranty Attributes
- Warranty Period
- 2 years
Warranty2 years
Overview Attributes
- Device Presentation
- mechanism with fixing frame
