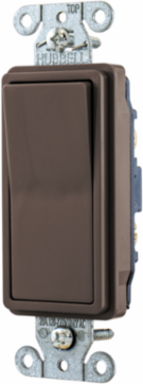

Hubbell Wiring Device-Kellems DS420 Specification Grade Four Way Decorator Switch, 20A 120/277V AC, 4.28 Inch x 1.73 Inch x 1.67 Inch
- MPN: DS420
- UPC: 783585151441
- PPN: HBL-DS420
- UNSPSC: 39122226
CAD
$153.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Control, Decorator Switch, Specification Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Brown
Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.28 in x 1.73 in x 1.67 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Action
- DPDT
- Color
- Brown
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.73 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Four Way
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2124;HBL2124
- Current Rating
- 20 A
- Series
- General Purpose
- BOX SIZE
- 3.600x9.900x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585151441
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359315101
Current / Amperage Rating20 A
Height1.67 in
Length4.28 in
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating20 A
Number of PolesDouble Pole
Size4.28 in x 1.73 in x 1.67 in
TypeRocker/Decorator
Weight0.2 lb.
ConnectivityBack and Side Wired
Number Of PolesDouble Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceSWITCH, DECO SER, 4W, 20A 120/277V, BR
Harmonization Code8536509040
MSDS FlagNo
Sub Class CodeA16A250
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.65 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.050 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
