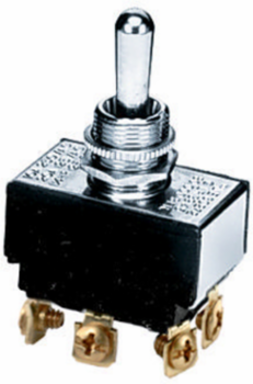

Hubbell Wiring Device-Kellems HBL223 Double Pole Double Throw Panel Mount Switch 10A 250V, 2.27 Inch x 0.76 Inch x 1.3 Inch
- MPN: HBL223
- UPC: 783585017136
- PPN: HBL-HBL223
- UNSPSC: 39122239
CAD
$32.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Double Pole Double Throw Center Off 10A 250V/10A 125V, Screw
Features
- Nickel Plated for Corrosion Resistance
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL223 AutoCAD Drawing
- Current / Amperage Rating
- 10/20 A
- Height
- 1.3 in
- Industry Standard(s)
- UL Listed
- Mounting Method
- Panel Mount
- Amperage Rating
- 10/20 A
- Number of Poles
- Double Pole
- Size
- 2.27 in x 0.76 in x 1.3 in
- Type
- General Purpose
- Weight
- 0.1 lb.
- Action
- DPDT
- Number Of Poles
- Double Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 223
- Series
- Double Pole/Double Throw
- BOX SIZE
- 2.678x4.798x3.178 (in)
- Carton - Number of Sub Packs
- 100
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585017136
- Each - Pack Description
- Each
- NAICS Code
- 3359315102
Country of OriginUnited States
Dimensions2.27 in x 0.76 in x 1.3 in
Horsepower - Maximum1.5
Length2.27 in
PerformanceEnvironmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
ColorMetallic
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating250/125 VAC
Width0.76 in
ConnectivityScrew Terminals
StyleScrew Terminal
Description - InvoicePANEL SW, DPDT, CTR OFF, SCREW TERM
Harmonization Code8536509999
MSDS FlagNo
Sub Class CodeA16A240
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
