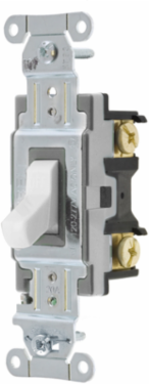

Hubbell Wiring Device-Kellems CS120W Toggle Switch, Single Pole, 20A 120/277V AC, 4.18 Inch x 1.49 Inch x 1.83 Inch
- MPN: CS120W
- UPC: 783585901145
- PPN: HBL-CS120W
- UNSPSC: 39122211
CAD
$6.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, White Toggle.
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Dielectric Strength | 1500V AC for 1 minute |
| Temperature Rise - Max. | 30C maximum at rated current |
| Toggle Type | Toggle |
| Size | 4.18 in x 1.49 in x 1.83 in |
| Wire Size | #14 AWG to #10 AWG |
| Mounting Screw | Thread cleaning captive |
| Color | White |
| Voltage | 120-277 VAC |
|---|---|
| Temperature Range | -40C to 75C |
| Pole | Single Pole |
| Connectivity | Side Wired Only |
| Weight | 0.15 lb |
| Material | Nylon, Zinc Plated Steel |
| Compliance | UL Listed, RoHS |
| Country of Origin | CN |
