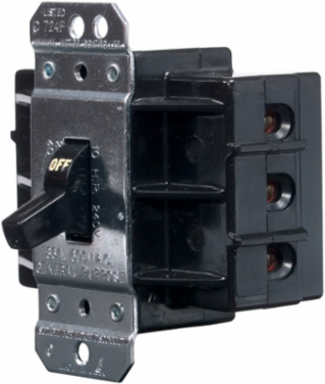

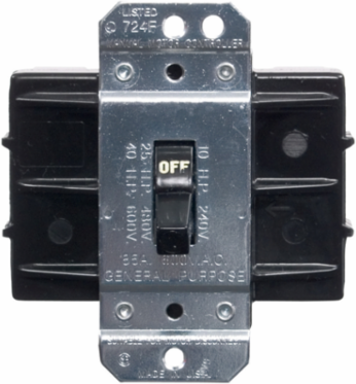

Hubbell Wiring Device-Kellems HBL7882D Industrial Grade Manual Motor Controller 80A 600V AC 2 Pole
- MPN: HBL7882D
- UPC: 783585202921
- PPN: HBL-HBL7882D
- UNSPSC: 39121521
CAD
$333.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Two Pole, 80A 600V AC, Back and Side Wired
Features
- Front and back wiring with steel screws and copper terminals
- Recessed wiring wells for finger safe environments
- Thermoset body withstands high temperatures
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL7882D AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Motor Disconnects
- Country of Origin
- United States
- Width
- 3.178 in
- Industry Standard(s)
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Current Rating
- 85
- Special Features
- Standard Product
- Type
- Back Wire
- Voltage Rating Description
- 600 VAC
- Amperage Rating
- 85 A
- Dielectric Strength
- 2,200V AC minimum for 1 minute
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number Of Poles
- 2 Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wattage
- 51000
- Description - Invoice
- 85A 600V 2P DISC SW
- Harmonization Code
- 8536509999
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Standard Toggle
- BOX SIZE
- 5.100x19.700x7.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585202921
- Each - Pack Description
- Each
- NAICS Code
- 3353146111
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextPulp & Paper Solutions
Current / Amperage Rating85 A
Horsepower - Maximum20
PerformanceElectrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
Number of Poles2 Pole
StandardCSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
Voltage Rating600 VAC
Weight0.75 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard Sized Product
Load CapacityInductive
Operating Cycles10,000 Cycles Minimum
PhaseSingle Phase
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
