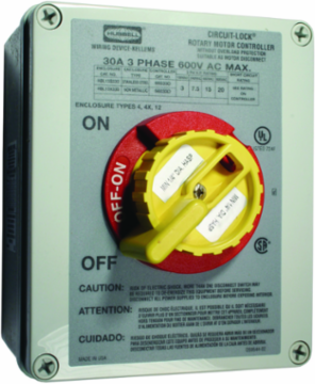

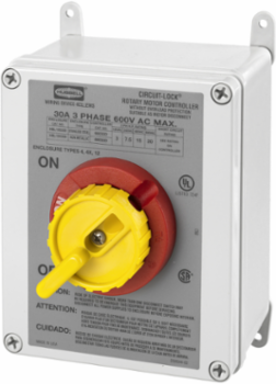

Hubbell Wiring Device-Kellems HBL13X33D Rotary Disconnect Switch, 30A 600V AC, Three Pole, NEMA 4X, 5.900 Inch Width
- MPN: HBL13X33D
- UPC: 783585202730
- PPN: HBL-HBL13X33D
- UNSPSC: 39121521
CAD
$536.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Rotary Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Gray
Features
- Optional Side Guard for close wall applications
- Clamping plate for secure back or side wiring
- Thermoset body provides resistance to electrical arc tracking
- Rotary Operator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.900 in
- Performance
- Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
- Current Rating
- 30
- Special Features
- Rotary Operator
- Type
- Disconnect Switches
- General Literature Asset 1 Display Text
- Circuit-Lock® Motor Disconnects
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized Product
- Load Capacity
- Inductive
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Style
- Standard Duty
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A240
- Series
- Non-Fused
- BOX SIZE
- 7.200x6.400x5.900 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585202730
- Case Weight
- 2.500 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Industry Standard(s)CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
ApplicationRotary
Enclosure TypeNEMA 4X
StandardCSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
Engineering Drawing 1 Display TextHBL13X33D AutoCAD Drawing
General Literature Asset 2 Display TextPulp & Paper Solutions
Amperage Rating30 A
Dielectric Strength2,200V AC minimum for 1 minute
Environmental ConditionsIndoor and Outdoor
Operating Cycles10,000 Cycles Minimum
PhaseThree Phase
Wattage18000
Description - Invoice30A 600V 3P RTRY DISC SW 4X PLAS
Harmonization Code8536509025
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
