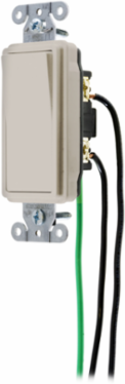

Hubbell Wiring Device-Kellems DSL120LA Decorator Switch, 20A 120/277V AC, Single Pole, Light Almond, 4.12 Inch x 1.73 Inch x 1.61 Inch
- MPN: DSL120LA
- UPC: 783585150895
- PPN: HBL-DSL120LA
- UNSPSC: 39122226
CAD
$44.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Light Almond
Features
- Labor Saving
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.12 in x 1.73 in x 1.61 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - 8" #12 AWG THHN
- Amperage Rating
- 20 A
- Color
- Light Almond
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Engineering Drawing 1 Display Text
- DSL120LA AutoCAD Drawing
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- DSL120OW
- Current Rating
- 20 A
- Series
- General Purpose
- BOX SIZE
- 5.625x18.375x14.625 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585150895
- Each - Pack Description
- Each
- NAICS Code
- 3359315101
Current / Amperage Rating20 A
Height1.61 in
Length4.12 in
Temperature Rise - Max.30°C maximum at rated current
Application8" #12 AWG THHN
Number of PolesSingle Pole
Size4.12 in x 1.73 in x 1.61 in
TypeRocker/Decorator
Width1.73 in
ConnectivityPre-Wired
Number Of PolesSingle Pole
Wire Size#12 AWG
Description - InvoiceSWITCH, DECO, SP, 20A 120/277V, LA, WL
Harmonization Code8536509040
MSDS FlagNo
Sub Class CodeA16A250
MaterialPolycarbonate
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
