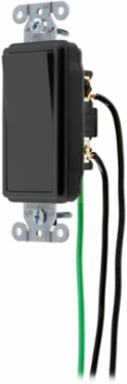

Hubbell Wiring Device-Kellems DSL320BK Decorator Switch 20A 120/277V AC, Three Way, 4.12 Inch x 1.73 Inch x 1.61 Inch, Black
- MPN: DSL320BK
- UPC: 783585187013
- PPN: HBL-DSL320BK
- UNSPSC: 39122226
CAD
$63.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Black
Features
- Labor Saving
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.12 in x 1.73 in x 1.61 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - 8" #12 AWG THHN
- Action
- SPDT
- Application
- 8" #12 AWG THHN
- Number of Poles
- Single Pole
- Size
- 4.12 in x 1.73 in x 1.61 in
- Type
- Rocker/Decorator
- Width
- 1.73 in
- Connectivity
- Pre-Wired
- Number Of Poles
- Single Pole
- Wire Size
- #12 AWG
- Description - Invoice
- SWITCH, DECO, 3W, 20A 120/277V, BK, WL
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 20 A
- Series
- General Purpose
- BOX SIZE
- 5.625x18.375x14.625 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585187013
- Each - Pack Description
- Each
- NAICS Code
- 3359315101
Current / Amperage Rating20 A
Height1.61 in
Length4.12 in
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating20 A
ColorBlack
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating120-277 VAC
Engineering Drawing 1 Display TextDSL320BK AutoCAD Drawing
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleThree Way
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A250
MaterialPolycarbonate
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
