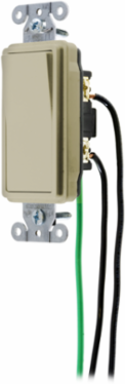

Hubbell Wiring Device-Kellems DSL115I Decorator Switch, Single Pole, 15A 120/277V AC, 4.12 Inch x 1.73 Inch x 1.61 Inch, Ivory
- MPN: DSL115I
- UPC: 783585150789
- PPN: HBL-DSL115I
- UNSPSC: 39122226
CAD
$53.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Ivory
Features
- Labor Saving
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.12 in x 1.73 in x 1.61 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - 8" #12 AWG THHN
- Amperage Rating
- 15 A
- Color
- Ivory
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Engineering Drawing 1 Display Text
- DSL115I AutoCAD Drawing
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A250
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 10.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Height1.61 in
Length4.12 in
Temperature Rise - Max.30°C maximum at rated current
Application8" #12 AWG THHN
Number of PolesSingle Pole
Size4.12 in x 1.73 in x 1.61 in
TypeRocker/Decorator
Width1.73 in
ConnectivityPre-Wired
Number Of PolesSingle Pole
Wire Size#12 AWG
Description - InvoiceSWITCH, DECO, SP, 15A 120/277V, IV, WL
Harmonization Code8536509040
MSDS FlagNo
Current Rating15 A
SeriesGeneral Purpose
BOX SIZE5.600x1.910x18.200 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack783585150789
Each - Pack DescriptionEach
NAICS Code3359315101
Certifications
- EU RoHS Indicator
- No
