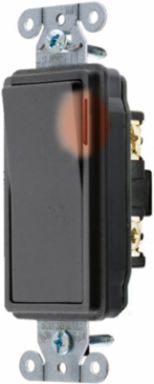

Hubbell Wiring Device-Kellems DS120PLBK Pilot Light Decorator Switch, 20A 120/277V AC, Single Pole, Black
- MPN: DS120PLBK
- UPC: 783585187853
- PPN: HBL-DS120PLBK
- UNSPSC: 39122226
CAD
$40.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Spec Grade, Pilot Light Decorator Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Black
Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.28 in x 1.43 in x 1.54 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Action
- SPDT
- Color
- Black
- Number of Poles
- Single Pole
- Size
- 4.28 in x 1.43 in x 1.54 in
- Type
- Rocker/Decorator
- Weight
- 0.2 lb.
- Connectivity
- Back and Side Wired
- Number Of Poles
- Single Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- SWITCH, DECO SER, SP, 20A 120/277V, PLBK
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 20 A
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.65 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 9.400 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height1.54 in
Length4.28 in
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating20 A
IndicatorLight On with Load On
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating120-277 VAC
Width1.43 in
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleSingle Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A250
Indicator(s) TypeRed LED
SeriesPilot Light
BOX SIZE3.700x10.000x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585187853
Case - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code3359315101
Certifications
- EU RoHS Indicator
- No
