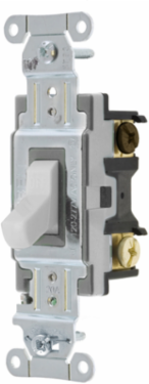

Hubbell Wiring Device-Kellems CS320W Toggle Switch 20A 120/277V AC Three Way Side Wired White
- MPN: CS320W
- UPC: 783585902142
- PPN: HBL-CS320W
- UNSPSC: 39122211
CAD
$25.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, White Toggle.
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- CS320W AutoCAD Drawing
- Current / Amperage Rating
- 20 A
- Height
- 1.83 in
- Length
- 4.18 in
- Standards - RoHS Compliance Status
- CM
- Action
- SPDT
- Color
- White
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.49 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Three Way
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- CS320WHIA
- Current Rating
- 20 A
- Series
- General Purpose
- BOX SIZE
- 3.600x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585902142
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet Height
- 43.200 in
- Pallet Weight
- 846.000 lb.
- NAICS Code
- 3359315101
Country of OriginChina
Dimensions4.18 in x 1.49 in x 1.83 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating20 A
Number of PolesSingle Pole
Size4.18 in x 1.49 in x 1.83 in
TypeToggle
Weight0.15 lb.
ConnectivitySide Wired Only
Number Of PolesSingle Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceSWITCH, SPEC, 3W, 20A 120/277V, WH
Harmonization Code8536509999
MSDS FlagNo
Sub Class CodeA16A250
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.9 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight9.250 lb.
Lowest Level UOMEach
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
