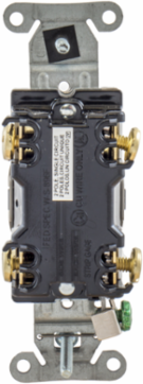

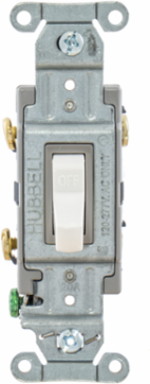

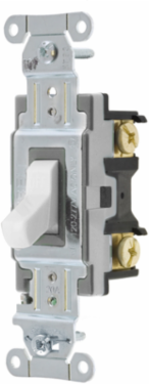

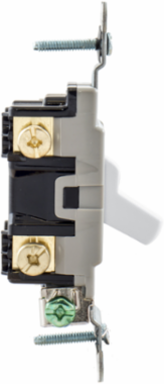

Hubbell Wiring Device-Kellems CSB220W Toggle Switch 20A 120/277V AC Double Pole, Back and Side Wired
Hubbell Wiring Device-Kellems CSB220W Toggle Switch 20A 120/277V AC Double Pole, Back and Side Wired
- MPN: CSB220W
- UPC: 783585154152
- PPN: HBL-CSB220W
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$15.86/ EA
Description
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 20A 120/277V AC, Back and Side Wired, White
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 4.18 in x 1.49 in x 1.83 in
- Height
- 1.83 in
- Length
- 4.18 in
- Standards - RoHS Compliance Status
- CM
- Amperage Rating
- 20 A
- Number of Poles
- Double Pole
- Size
- 4.18 in x 1.49 in x 1.83 in
- Type
- Toggle
- Weight
- 0.15 lb.
- Connectivity
- Back and Side Wired
- Number Of Poles
- Double Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- SWITCH, COMM, DP, 20A 120/277V, B+S, WH
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 20 A
- Series
- General Purpose
- BOX SIZE
- 3.300x9.900x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585154152
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585154151
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating20 A
Each - Width1.930 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.30°C maximum at rated current
ColorWhite
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating120-277 VAC
Width1.49 in
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleDouble Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A250
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.1 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.391 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight1015.000 lb.
Certifications
- EU RoHS Indicator
- Yes
