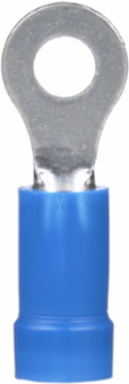

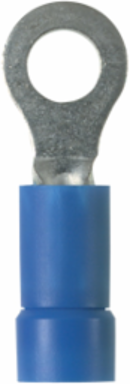

Panduit PV14-6R-C Pan-Term® PV14-6R-C Ring Terminal, Blue, Vinyl, 14-16 AWG, #6 Stud, PK100

Pan-Term® PV14-6R-C Ring Terminal, Blue, Vinyl, 14-16 AWG, #6 Stud, PK100
Pan-Term® PV14-6R-C Ring Terminal, Blue, Vinyl, 14-16 AWG, #6 Stud, PK100
  • MPN: PV14-6R-C
  • UPC: 074983801169
  • PPN: PAN-PV14-6R-C
  • UNSPSC: 39121409

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$0.66/ EA

Description

The PV14-6R-C Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Specifications

Maximum Voltage
600 V
Wire Size
14-16 AWG
Stud Hole Size
3.5 mm (#6)
Overall Width
0.31 in (7.9 mm)
Tongue Thickness
0.03 in (0.8 mm)
Maximum Wire Insulation Diameter
0.17 in (4.3 mm)
Finish
Tin-Plated
Seam Type
Brazed
Compliance
cULus Listed, CSA Certified, RoHS Compliant, ARRA Compliant
Country of Origin
Mexico
Maximum Operating Temperature105 °C
Stud Size#6
Overall Length0.92 in (23.4 mm)
Tongue Width0.31 in (7.9 mm)
Wire Strip Length5/16 in (7.9 mm)
MaterialCopper, Vinyl
Barrel TypeFunnel Entry
Flammability RatingUL 94 V-0
ColorBlue
Product TypeRing Terminal
