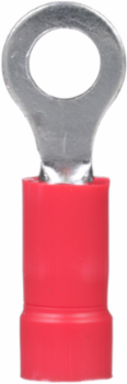

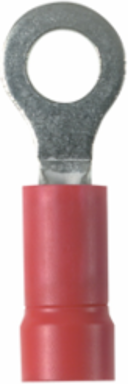

Panduit PV18-8R-MY Pan-Term® PV18-8R-MY Ring Terminal, Red, Vinyl, 18-22 AWG, #8 Stud, PK1000
- MPN: PV18-8R-MY
- UPC: 074983417186
- PPN: PAN-PV18-8R-MY
- UNSPSC: 39121409
CAD
$0.24
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ring Terminal, 22 – 18 AWG, #8 stud size, vinyl insulated, funnel entry, bulk package.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Segment | IEI |
| Wire Strip Length (mm) | 7.9 |
| Flammability Rating | UL 94 V-0 |
| Maximum Operating Temperature (°C) | 75 |
| Stud Hole Size (mm) | 4 |
| Barrel Length (mm) | 9.9 |
| Tongue Width (mm) | 7.9 |
| Tongue Length (mm) | 13.2 |
| Overall Length (In.) | 0.91 |
| Insulation Diameter (mm) | 3.7 |
| Tongue Thickness (mm) | 0.8 |
| Insulation Diameter (In.) | 0.15 |
| Base Material | Copper |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Tongue Thickness (In.) | 0.03 |
| Barrel Length (In.) | 0.39 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Wire Size | 22-18 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Stud Hole Size (In.) | #8 |
| Product Type | Ring Terminal |
| Maximum Voltage (kV) | 0.6 |
| Sub Brand | Pan-Term® |
| Stud Size | #8 |
| Overall Width (mm) | 7.9 |
| Wire Strip Length (In.) | 5/16 |
| Color Code | Red |
| Outer Diameter (In.) | 0.15 |
| Overall Width (In.) | 0.31 |
| Packaging Type | Box |
| Overall Length (mm) | 23.1 |
| Maximum Operating Temperature (°F) | 167 |
| Outer Diameter (mm) | 3.8 |
| Tongue Width (In.) | 0.31 |
| Barrel Type | Funnel Entry |
| Tongue Length (In.) | 0.52 |
| Finish/Coating | Tin-Plated |
| Insulation Material | Vinyl |
| Copper Conductor Size | 22-18 AWG |
Packaging Details
| UPC | 07498341718 |
|---|---|
| Standard Package Volume Ft3 | 0.0482 |
| Std Package Height In | 3.4 |
| Std Package Length In | 7.15 |
| Std Package Width In | 3.4 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 1000 |
| Standard Carton Weight Pounds | 0.0000 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Lead Content Indicator | N |
| Hazardous Material Flag | N |
| Pallet Quantity | 660,000 |
| Pallet Weight | 1,518.0000 |
| GTIN Package | 00074983417186 |
|---|---|
| Standard Package Weight Pounds | 2.3000 |
| Std Package Height MM | 86.36 |
| Std Package Length MM | 181.61 |
| Std Package Width MM | 86.36 |
| UOM EA PK | PK |
| Standard Carton Volume Ft3 | 0.0000 |
| Std Ctn Qty | 0 |
| EAN | 00074983417186 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Restricted Use of Hazardous Substances | N |
| Min Order Qty | 1,000.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
