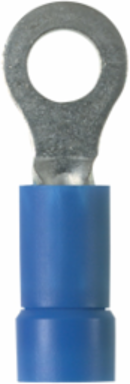

Panduit PV14-8R-C Pan-Term® PV14-8R-C Ring Terminal, Blue, Vinyl, 14-16 AWG, #8 Stud, PK100
Panduit PV14-8R-C Pan-Term® PV14-8R-C Ring Terminal, Blue, Vinyl, 14-16 AWG, #8 Stud, PK100
- MPN: PV14-8R-C
- UPC: 074983801183
- PPN: PAN-PV14-8R-C
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.66/ EA
Description
The PV14-8R-C Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Tongue Thickness (In.)
- 0.03
- Minimum Metric Conductor Size (mm²)
- 1.5
- For Use With
- CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
- Maximum Wire Insulation Diameter (In.)
- 0.17
- Overall Width (mm)
- 7.9
- Packaging Type
- Bottle
- Overall Length (In.)
- 0.92
- Sub Brand
- Pan-Term®
- Tongue Width (mm)
- 7.9
- Product Type
- Ring Terminal
- Wire Strip Length (In.)
- 5/16
- Overall Length (mm)
- 23.4
- Maximum Wire Insulation Diameter (mm)
- 4.3
- Stud Hole Size (In.)
- #8
- Overall Width (In.)
- 0.31
- Color Code
- Blue
- Copper Conductor Size
- 16-14 AWG
Any Reason Not to SellN
Finish/CoatingTin-Plated
Flammability RatingUL94V-0
Stud Size#8
Maximum Operating Temperature (°F)221
Maximum Metric Conductor Size (mm²)2.5
Maximum Operating Temperature (°C)105
Barrel TypeFunnel Entry
Seam TypeBrazed
Wire Strip Length (mm)7.8
Stud Hole Size (mm)4
Tongue Width (In.)0.31
Insulation MaterialVinyl
Base MaterialCopper
Maximum Voltage (kV)0.6
Tongue Thickness (mm)0.8
Maximum Voltage (V)600
Wire Size16-14 AWG
Packaging Details
- UPC
- 07498380118
- Standard Package Volume Ft3
- 0.0067
- Std Package Height In
- 1.75
- Std Package Length In
- 3.6
- Std Package Width In
- 1.8
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.0337
- Std Carton Height In
- 3.65
- Std Carton Length In
- 9.3
- Std Carton Width In
- 2.05
- Std Ctn Qty
- 500
- EAN
- 00074983801183
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 500.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983801183
Standard Package Weight Pounds0.3000
Std Package Height MM44.45
Std Package Length MM91.44
Std Package Width MM45.72
UOM EA PKPK
GTIN Carton50074983801188
Standard Carton Weight Pounds1.5000
Std Carton Height MM92.71
Std Carton Length MM236.22
Std Carton Width MM52.07
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
