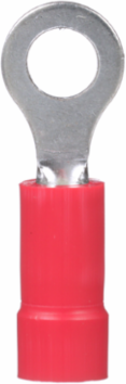

Panduit PV18-8R-CY Pan-Term® PV18-8R-CY Ring Terminal, Red, Vinyl, 16-22 AWG, #8 Stud, PK100
- MPN: PV18-8R-CY
- UPC: 074983694778
- PPN: PAN-PV18-8R-CY
- UNSPSC: 39121409
CAD
$0.64
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The PV18-8R-CY Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V (0.6 kV)
- Copper Conductor Size
- 22-18 AWG
- Minimum Metric Conductor Size
- 0.5 mm²
- Wire Strip Length
- 5/16 in
- Overall Length
- 0.91 in (23.1 mm)
- Tongue Width
- 0.31 in (7.9 mm)
- Stud Size
- #8
- Material
- Copper
- Insulation Material
- Vinyl
- Barrel Type
- Funnel Entry
- RoHS Compliant
- Compliant
Maximum Operating Temperature105 °C (221 °F)
Wire Size22-18 AWG
Maximum Metric Conductor Size1.5 mm²
Maximum Wire Insulation Diameter0.15 in (3.8 mm)
Overall Width0.31 in (7.9 mm)
Tongue Thickness0.03 in (0.8 mm)
Stud Hole Size#8 (4 mm)
FinishTin-Plated
Seam TypeBrazed
Flammability RatingUL 94 V-0
Country of OriginMexico
