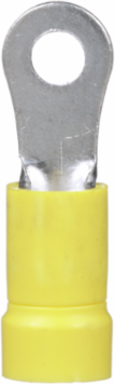

Panduit PV10-6R-L Pan-Term® PV10-6R-L Ring Terminal, Vinyl Insulated-Funnel Entry
Panduit PV10-6R-L Pan-Term® PV10-6R-L Ring Terminal, Vinyl Insulated-Funnel Entry
- MPN: PV10-6R-L
- UPC: 074983801282
- PPN: PAN-PV10-6R-L
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.84/ EA
Description
Ring Terminal, 12 – 10 AWG, #6 stud size, vinyl insulated, funnel entry, standard package.
Specifications
Packaging Details
- UPC
- 07498380128
- Standard Package Volume Ft3
- 0.0037
- Std Package Height In
- 1.8
- Std Package Length In
- 3.6
- Std Package Width In
- 1.75
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.0368
- Std Carton Height In
- 3.8
- Std Carton Length In
- 9.3
- Std Carton Width In
- 3.9
- Std Ctn Qty
- 500
- EAN
- 00074983801282
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 50.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983801282
Standard Package Weight Pounds0.2500
Std Package Height MM45.72
Std Package Length MM91.44
Std Package Width MM44.45
UOM EA PKPK
GTIN Carton50074983801287
Standard Carton Weight Pounds2.5000
Std Carton Height MM96.52
Std Carton Length MM236.22
Std Carton Width MM99.06
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Tongue Length (In.)
- 0.53
- Finish/Coating
- Tin-Plated
- Tongue Thickness (mm)
- 1
- Wire Strip Length (mm)
- 7.9
- Tongue Length (mm)
- 13.3
- Base Material
- Copper
- Barrel Length (mm)
- 13.3
- Barrel Type
- Funnel Entry
- Maximum Voltage (V)
- 300
- Tongue Thickness (In.)
- 0.04
- Stud Hole Size (In.)
- #6
- Maximum Metric Conductor Size (mm²)
- 6
- Insulation Material
- Vinyl
- Flammability Rating
- UL94V-0
- Overall Width (mm)
- 7.9
- Wire Strip Length (In.)
- 5/16
- Minimum Metric Conductor Size (mm²)
- 4
- Insulation Diameter (mm)
- 5.7
- Copper Conductor Size
- 12-10 AWG
Any Reason Not to SellN
Tongue Width (mm)7.9
Packaging TypeBottle
Product TypeRing Terminal
Maximum Wire Insulation Diameter (In.)0.23
Tongue Width (In.)0.31
Overall Length (mm)26.7
Maximum Operating Temperature (°F)167
Stud Size#6
Sub BrandPan-Term®
For Use WithCT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Insulation Diameter (In.)0.23
Stud Hole Size (mm)3.5
Overall Width (In.)0.31
Maximum Operating Temperature (°C)75
Overall Length (In.)1.05
Maximum Voltage (kV)0.3
Color CodeYellow
Maximum Wire Insulation Diameter (mm)5.7
Barrel Length (In.)0.53
Wire Size12-10 AWG
