Panduit PV10-8R-L Pan-Term® PV10-8R-L Ring Terminal, Yellow, Vinyl, 10-12 AWG, PK50

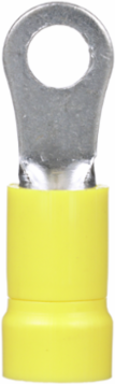

Pan-Term® PV10-8R-L Ring Terminal, Yellow, Vinyl, 10-12 AWG, PK50
  • MPN: PV10-8R-L
  • UPC: 074983801305
  • PPN: PAN-PV10-8R-L
  • UNSPSC: 39121409

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$0.83/ EA

Description

The PV10-8R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Specifications

Maximum Voltage
600 V
Copper Conductor Size
10-12 AWG
Maximum Metric Conductor Size
6 mm²
Stud Hole Size
4 mm (#8 in.)
Wire Strip Length
5/16 in. (7.9 mm)
Overall Width
0.31 in. (7.9 mm)
Tongue Thickness
0.04 in. (1 mm)
Insulation Material
Vinyl
Seam Type
Brazed
Flammability Rating
UL 94 V-0
Color
Yellow
Maximum Operating Temperature105 °C (221 °F)
Minimum Metric Conductor Size4 mm²
Stud Size#8
Maximum Wire Insulation Diameter0.23 in. (5.8 mm)
Overall Length1.05 in. (26.7 mm)
Tongue Width0.31 in. (7.9 mm)
MaterialCopper
Finish/CoatingTin-Plated
Barrel TypeFunnel Entry
RoHS CompliantYes
Country of OriginMexico
