ABB 1SDA054445R1 T5H 400 TMA 400-4000 3p F F
ABB 1SDA054445R1 T5H 400 TMA 400-4000 3p F F
- MPN: 1SDA054445R1
- UPC: 888614401532
- PPN: ABB-1SDA054445R1
- UNSPSC: 39121100
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

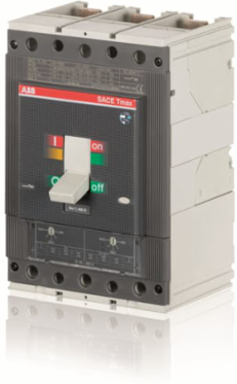

C.BREAKER TMAX T5H 400 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 400 I3=2000...4000 A
Specifications
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Number of Poles
- 3
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release Type
- TM
- Standards
- IEC
- Suitable For
- T5
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
Mechanical Durability20000 cycle120 cycles per hour
Power Lossat Rated Operating Conditions per Pole 19.5 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)400 A
Rated Insulation Voltage (Ui)1000 V
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 40 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 40 kA(250 V DC) 2 Poles in Series 70 kA(500 V DC) 2 Poles in Series 50 kA(750 V DC) 3 Poles in Series 36 kA
ReleaseTMA
Short-Circuit Performance LevelH
Sub-typeT5
Suitable for Product ClassMoulded Case Circuit Breakers
Test Voltage Max (Utest)3500 V
VersionF
Dimensions
- Product Net Width
- 140 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight4.8 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- E-Number (Finland)
- 3655298
- Customs Tariff Number
- 85362090
Minimum Order Quantity1 piece
