ABB 1SDA054456R1 T5N 630 TMA 500-5000 3p F F
- MPN: 1SDA054456R1
- UPC: 804325461627
- PPN: ABB-1SDA054456R1
- UNSPSC: 39121100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

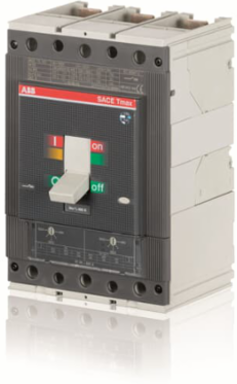

C.BREAKER TMAX T5N 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 500 I3=2500...5000 A
Specifications
Additional Information
- Electrical Durability
- 5000 cycle60 cycles per hour
- Number of Poles
- 3
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 25 kA(750 V DC) 3 Poles in Series 16 kA
- Release
- TMA
- Short-Circuit Performance Level
- N
- Sub-type
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Mechanical Durability20000 cycle120 cycles per hour
Power Lossat Rated Operating Conditions per Pole 28.8 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)500 A
Rated Insulation Voltage (Ui)1000 V
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
Rated Uninterrupted Current (Iu)630 A
Release TypeTM
StandardsIEC
Suitable ForT5
Terminal Connection TypeFixed Circuit-BreakersFront
Test Voltage at Industrial Frequency for 1 Minute3500 V
Dimensions
- Product Net Width
- 140 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight4.579 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
- SCIP
- b369b3e1-2514-4bd1-890f-1a7c3f0da4d0 Italy (IT)
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Simplified SCIPcc318231-4108-4216-8c99-d6c58e685348 Finland (FI)2d4c053a-592d-4189-b4cf-66610a739e45 Poland (PL)42e4bf8c-6386-4776-a505-7cdb94a94ea5 Denmark (DK)b6142632-af42-4f70-b5db-4a9205dfe30b Netherlands (NL)7efc0da7-3da6-421a-ad0e-b9d18359f10a Germany (DE)51d4e778-f746-4da5-9b2d-ae919cd00062 Germany (DE)00728f53-23b1-4e7e-96e9-9c6806c1530e Croatia (HR)63c29827-4ed0-425e-bfcc-7f14a98d04a6 Czech Republic (CZ)1871b1f7-5ab4-40dc-82b6-6ddd9142d05b Poland (PL)559ceeed-04af-4edf-b12d-767879fa299b Netherlands (NL)5ff62d41-e8fa-4606-8ad4-f26ef613d69d Netherlands (NL)d23ec4c7-f3ec-45f3-a148-1aa47561bc55 Estonia (EE)7bbde3c9-689b-4a25-9476-d5d8dddc951e Greece (GR)0211e3f8-143b-4b1c-b533-6faf1e5ebc1d Portugal (PT)b0c590ce-dae8-4651-9cf7-f35abea367c3 Bulgaria (BG)1baffa92-ca36-4ed0-b471-f9300a221c89 Sweden (SE)98ab9c5a-2b14-4bf3-bf92-438686b70a24 Poland (PL)51d24280-b61c-462f-a462-09d518656aae France (FR)f8f2edd7-373b-40c0-bb51-7139e2f2ce08 Sweden (SE)e8eab919-b356-4a85-a64f-5f98c674716d Germany (DE)32c8be9d-5e1a-4dfb-816f-e6c4368f75af Germany (DE)0ce19415-6721-4508-b3b0-4df71ddf81e7 France (FR)6fd5db72-1e98-4ff9-81f8-a97399327cf9 Netherlands (NL)ce44f998-27e2-4a8e-ab33-3689940efb5b Spain (ES)3000cc4b-012d-46ac-a2a5-937625e9cf51 Netherlands (NL)092c61fb-46cb-4fc2-82d9-eda3f8c016d4 Norway (NO)
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- E-Number (Finland)
- 3655293
- Customs Tariff Number
- 85362090
Minimum Order Quantity1 piece
