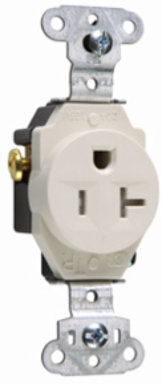

Pass & Seymour TR5351LA 20A 125V Tamper-Resistant Single Receptacle, 1.19 Inch Depth, Light Almond
- MPN: TR5351LA
- UPC: 785007241952
- PPN: P-S-TR5351LA
CAD
$33.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Tamper-Resistant Single Receptacle, 1.19 Inch Depth, Light Almond
Features
- Dual mechanical shutter system to help prevent insertions of foreign objects.
- AC receptacles available in 15 and 20A, 125V.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.19 in
- Height
- 3.28 in
- Width
- 1.38 in
- Product Line
- Pass & Seymour
- Amperage
- 20.0 A
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Is Tamper-Resistant
- Yes
- Standard
- CSA C22.2 No. 42
- Outlet Type
- Tamper-Resistant
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Operating Temperature
- -40°-60°C
- Environmental Conditions
- Flammability: UL94 V2
Special FeaturesDual mechanical shutter system to help prevent insertion of foreign objects. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. One-piece brass triple-wipe power contacts for lasting retention.
ColorLight Almond
Country of OriginMexico
StandardUL498
Voltage125.0 V
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles1.0
Number of PolesDouble Pole
Application SectorCommercial
Connection LocationBack and Side
Operating Temperature Max60.0 °C
FeaturesHeavy Duty Steel Mounting Strap
Dielectric StrengthWithstands 2000V minimum
