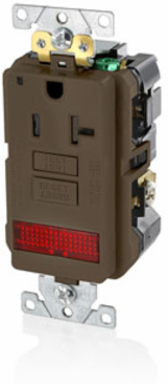

Leviton GFPL2-PL 20 Amp SmartlockPro GFCI Receptacle Outlet, Industrial Grade, Tamper-Resistant, Brown
Leviton GFPL2-PL 20 Amp SmartlockPro GFCI Receptacle Outlet, Industrial Grade, Tamper-Resistant, Brown
- MPN: GFPL2-PL
- UPC: 078477723937
- PPN: LEV-GFPL2-PL
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$72.38/ EA
Description
SmartlockPro Self-Test GFCI Single Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Pilot Light (Illuminated - ON)20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Brown
Specifications
Standards and Certifications
- ANSI
- C-73
- Certification/Listing
- UL, CSA, NOM-ANCE
Applicable StandardsUL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- Polycarbonate
- Ground Clips
- Brass
- Line Contacts
- Brass
- Strap Material
- Galvanized Steel
- Terminal Screws
- Plated Steel
Face MaterialPBT
Grounding ScrewPlated Steel
Shutter MechanismDelrin® Acetal
Terminal ClampBrass
Mechanical Specifications
- Product ID
- Ratings are permenantly marked on device
- Terminal Accom.
- 14-10 AWG solid or stranded
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Trip LevelClass A, 5mA plus or minus 1mA
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Brand
- SmartlockPro
- Device Type
- Single Receptacle Outlet
- Function
- GFCI
ColorBrown
FeatureTamper-Resistant|Pilot Light (IlluminatedON)
GradeExtra Heavy-Duty Industrial Specification Grade
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-35C to +66C
Electrical Specifications
- Amperage
- 20 A
- Pole
- 2
- Voltage
- 125 VAC
GroundingSelf-Grounding
Short Circuit Current Rating10kA
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
