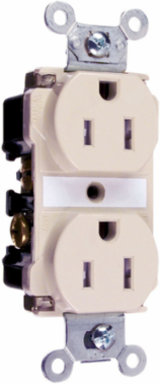

Pass & Seymour TR62LA Tamper-Resistant Receptacle 15A 125V Light Almond, 2.75 Inch Height
- MPN: TR62LA
- UPC: 785007145144
- PPN: P-S-TR62LA
CAD
$68.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tamper-Resistant Receptacle 15A 125V Light Almond, 2.75 Inch Height
Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
- Exclusive patented feature, circuit label on face allows permanent circuit identification.
- Extra heavy-duty brass, one-piece mounting strap with integral ground.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Impact-resistant nylon face and back body.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Two drive screws anchor strap to back body and face.
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.9 in
- Height
- 2.75 in
- Width
- 1.625 in
- Phase
- Three
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Outlet Type
- Tamper-Resistant
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
ColorLight Almond
Product LinePass & Seymour
Country of OriginMexico
Amperage15.0 A
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Number of PolesDouble Pole
Application SectorCommercial
NEMA Configuration Code5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Special FeaturesSurge protective, corrosion resistant, led indication, back & side wire
