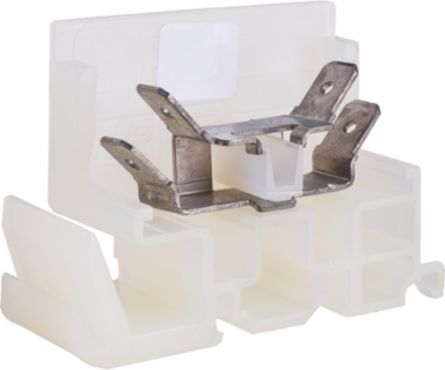

Square D 9080GS6 Linergy Terminal Block, 20A 600V, Copper Wire, 0.75 Inch Depth, 2.19 Inch Width

MPN: 9080GS6
UPC: 785901155355
PPN: SCH-9080GS6

$4.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has slip on connectors will accept solid or stranded copper wires from 22 through 12 AWG with a 0.25 x 0.032 slip on connector. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 20 ampere and up to 600 VAC or VDC.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Depth	0.75 in

Physical Attributes

Color	natural

Complementary Attributes

Line Rated Current	20-20 A UL, 20-20 A CSA

Important Information Attributes

Persona Type Ids	LC, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Mounting Support	35 mm DIN rail, 9080GH track
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Electrical Connection	Faston connector
Localisation On Device	standard
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 10
Returnability	No
Height Nominal	1.69 in
[Ue] Rated Operational Voltage	600 V AC/DC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL recognized E60616 CCN XCFR2, CSA file 62144 class 6228 01, CE
Local Publishable Date	2025-11-13
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1918
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	22 AWG...12 AWG copper
Energy Efficiency Optimized	False
Number Of Terminal Blocks	16 per foot
Product Or Component Type	terminal block
Range Of Product	9080G
Sustainable Packaging	No
Width Nominal	2.19 in
Connections - Terminals	Faston connector tin plated brass
Package Weight(Lbs)	4.5 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	GF6B
Reach Regulation	Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation	-40-257 °F, -40-257 °F
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
