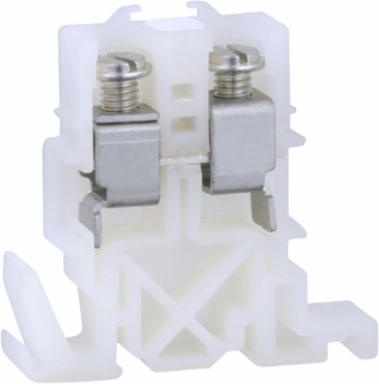

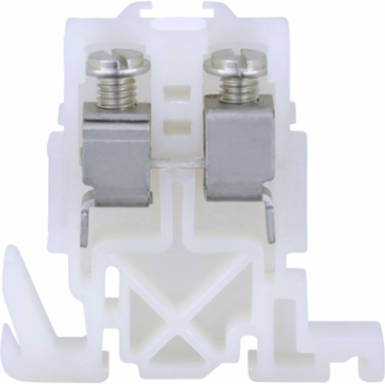

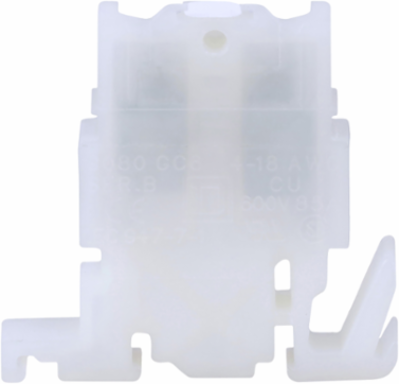

Square D 9080GC6 Linergy Terminal Block, 110A, 600V, 1.99 Inch Wide, Set of 50
Square D 9080GC6 Linergy Terminal Block, 110A, 600V, 1.99 Inch Wide, Set of 50
- MPN: 9080GC6
- UPC: 785901155065
- PPN: SCH-9080GC6
- UNSPSC: 39121410
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$11.57/ EA
Description
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications.
Features
- Natural colored block, 100 amp, box connector
- Meets a wide variety of application requirements
- Offers labor savings with easy wiring requiring a standard screwdriver
Specifications
Physical Attributes
- Color
- natural
Conformance Attributes
- Product Certifications
- CE, CSA file 62144 class 6228 01, UL recognized E60616 CCN XCFR2
Complementary Attributes
- Line Rated Current
- 110-110 A UL, 85-85 A CSA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 35 mm DIN rail, 9080GH track
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Electrical Connection
- zinc plated steel box lugs
- Package Weight Lbs
- 22.68 g
- Product Or Component Type
- terminal block
- Range Of Product
- 9080G
- Sustainable Packaging
- No
- Ue Rated Operational Voltage2
- 600 V AC/DC
- Medium Desc
- Terminal block, Linergy, box connector, natural colored block, 110A, 600V
- Product Kit Identifier
- N
- Number Of Terminal Blocks
- 28 per foot
- Connections Terminals3
- lug zinc plated steel 32-35 lbf.in : AWG 18...AWG 4 copper)
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
AWG GaugeAWG 18...AWG 4 copper
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 50
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections Terminalslug zinc plated steel 32-35 lbf.in : AWG 18...AWG 4 copper)
Stocking FlagN
Localisation On Devicestandard
Global Commercial StatusCommercialised
Ue Rated Operational Voltage5600 V AC/DC
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -40-257 °F
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of SVHC
- Yes
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Product CompatibilityGC6B
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 0.43 in
