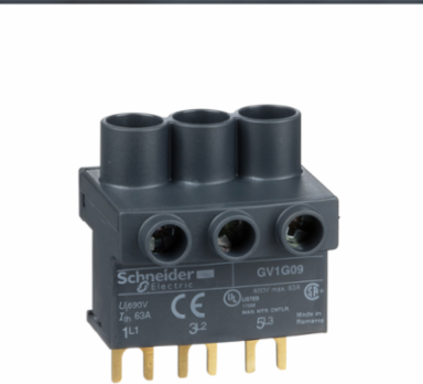

Schneider Electric GV1G09 TeSys Terminal Block 3P, 63A/690V, IP20, Screw Clamp Terminals

MPN: GV1G09
PPN: SCH-GV1G09

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$32.91

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys GV terminal block, 3 phases, 63A/690V, to supply busbar sets GV2G. To be inserted directly on the top terminals of the devices connected by the busbar sets. Connection to the supply cable by screw connectors.

Features

Specifically designed for use with Schneider Electric TeSys Deca and GV2 manual motor starters, this terminal block provides a dedicated, high-integrity power entry point. Using the GV1G09 ensures a seamless mechanical and electrical fit, eliminating the risk of overheating or arcing often associated with mismatched third-party components in high-vibration industrial environments.
The GV1G09 features an ergonomic top-entry design that allows for clean, vertical cable routing directly into the busbar system. This streamlined configuration significantly reduces the amount of wire bending space required, allowing for a more compact and organized control panel layout that simplifies both initial installation and future maintenance inspections.
Engineered with an IP20-rated shroud, this terminal block prevents accidental contact with live electrical terminals, protecting personnel during routine diagnostic testing. This safety-first construction ensures your motor control center (MCC) remains fully compliant with OSHA and IEC international standards, providing peace of mind for facility managers and electrical contractors alike.
Specifically engineered for high-voltage industrial applications, this 3-pole terminal block provides a maximum insulation voltage of 690V. Using this OEM Schneider component ensures that your motor starter assembly remains properly isolated even during high-load operations, preventing hazardous arcing and ensuring your control panel meets the most stringent IEC 60947-2 safety standards.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Costa Rica, France, United Kingdom, Hungary, India, Morocco, Romania, United States

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	TeSys GV2, TeSys U, TeSys Deca
Connections - Terminals	screw clamp terminals 1 cable(s) 1.5-25 mm² - solid, screw clamp terminals 2 cable(s) 1.5-6 mm² - solid, screw clamp terminals 2 cable(s) 1.5-4 mm² - flexible without cable endscrew clamp terminals 1 cable(s) (4 AWG) - flexible, screw clamp terminals 1 cable(s) (4 AWG) - solid, screw clamp terminals 1 cable(s) 1.5-16 mm² - flexible with cable end, screw clamp terminals 1 cable(s) 1.5-16 mm² - flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm² - flexible with cable end
Local Publishable Date	2026-07-07
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2207006
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2542
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	GV1G
Energy Efficiency Optimized	False
Number Of Poles	3P
Product Name	FT
Range	Linergy
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ie] Rated Operational Current	63 A
Accessory / Separate Part Category	connection accessory
Package Weight(Lbs)	49.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Certificate Agency	CE, UKCA
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	GV1G
Mounting Location	top
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	terminal block
Returnability	Yes
Tightening Torque	1.7-1.7 N.m screw clamp terminals2.2-2.2 N.m connector
Pep Code	ENVPEP2207006EN
[Ui] Rated Insulation Voltage	690 V IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI2207006
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2207006EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2207006EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
