Schneider Electric GV4APN02 TeSys Deca Extended Rotary Handle Red IP54, 214-627mm Door Distance
Schneider Electric GV4APN02 TeSys Deca Extended Rotary Handle Red IP54, 214-627mm Door Distance
- MPN: GV4APN02
- PPN: SCH-GV4APN02
- UNSPSC: 31162801
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$380.71/ EA
Description

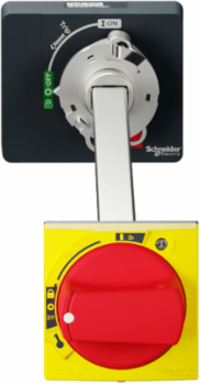

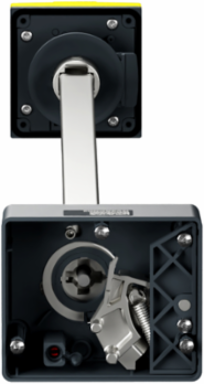

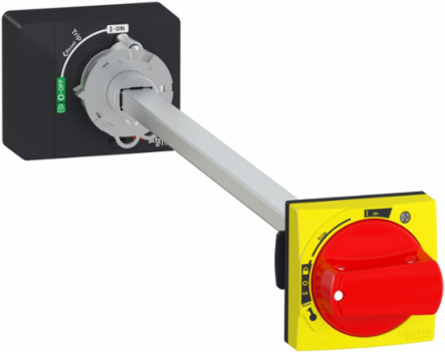

TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately).
Features
- New modern look & feel of all machines
- Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
- Easier to install and operate with multi-standard screws
- Sturdy and long-lasting power connection with EverLink terminals
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
Specifications
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- Local Data Status
- Publishable
- Serviceability
- No
- Field Service Division
- PPIBS
- WEEE Scope
- Out
- WEEE Exclusion Rationale
- Product/component not in scope – not electric/electronic device
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Halogen Free Status
- Halogen free plastic parts product
- Handle Front Plate Color
- yellow
- Marking
- OFF - Trip - ON
- Mounting Mode
- fixed
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Sustainable Packaging
- No
- Medium Desc
- TeSys Deca - extended rotary handle red - IP54
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Rotary Handle Padlockingpadlock in OFF position, 1 to 3 padlocks, padlock in ON position
Local Publishable Date2025-07-09
TraceabilityNo
WEEE ApplicabilityFinished product
Legacy WEEE ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2204005EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Handle Colorred
Locking Options Description1 to 3 padlocks Ø 4 to Ø 8
Mounting Locationdoor of enclosure
Package Weight Lbs671.000 g
Product Or Component Typerotary handle kit
Rotary Handle Mounting Styleextended
Accessory Separate Part Category2control accessory
Stocking FlagY
Pep CodeENVPEP2204005EN
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2204005EN
- IP Degree Of Protection
- IP54
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2204005EN
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI2204005EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- rotary handle kit
Specifications
- Country of Origin
- Poland, Sweden
