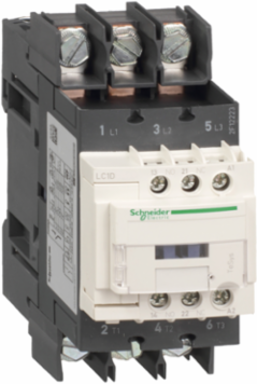

Schneider Electric LC1D40A6K7 TeSys Deca Contactor, 3P, 40A, 400V, 100V AC Coil
- MPN: LC1D40A6K7
- PPN: SCH-LC1D40A6K7
CAD
$462.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust applications, this TeSys Deca Contactor from Schneider Electric provides reliable control in automation and motor management systems. With a capacity of 40A and a voltage rating of 400V, it offers effective performance across a variety of operational scenarios. The 100V AC coil ensures efficient actuation, making it an ideal choice for starters and contractors in complex control setups. Designed for durability, the LC1D40A6K7 is a key component for professionals seeking dependable and high-performance solutions in their industrial environments.
Documentation & Downloads
Specifications
Additional
- Amperage
- 60 A AC-1, 40 A AC-3 at <= 440 V
- Maximum Horse Power Rating
- 30 Hp at 460-480 V AC 3 phase motors
- Rated Breaking Capacity
- 800 A at 440 V AC power circuit
- Overvoltage Category
- III
- Impulse Withstand Voltage
- 6 kV IEC 60947
- Control Circuit Voltage
- 100 V AC 50/60 Hz
- Height
- 122 mm (4.80 in)
- Depth
- 120 mm (4.72 in)
- Mechanical Durability
- 6 million cycles
- IP Degree of Protection
- IP20 front face IEC 60529
Motor Power18.5 kW at 380-400 V AC (AC-3)
Rated Making Capacity800 A at 440 V AC power circuit
Rated Insulation Voltage600 V AC power circuit
Pollution Degree3
Operating Temperature-40 to 60 °C
Poles3P
Width55 mm (2.17 in)
Net Weight0.85 kg (1.87 lb)
Electrical Durability1.5 million cycles at 40 A AC-3 <= 440 V
Flame RetardanceV1 UL 94
